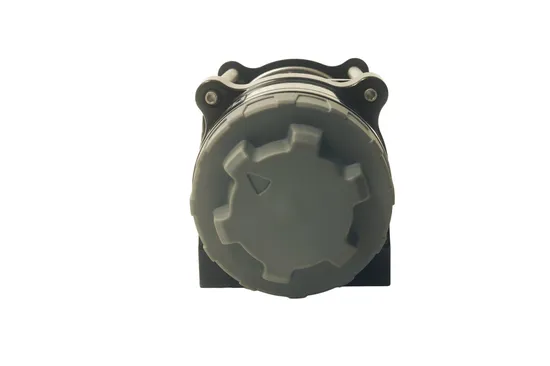

6000lb 12V Winch with Steel Rope and Wireless Remote

Product Description

We all know big rigs require bigger winch, and that's why we are introducing the 6000lB winch! You get a dash switch and a wired or wireless remote, full-length waterprood wiring harness, pull strap, roller fairlead, and more that'll make your life earlier.

Rated line pulls:	6000 lbs. (2722 kg )
Motor:	Permanent magnet motor(Input Power)1.74 hp / 1.3kW (DC 12V)
Gear reduction ratio:	166:1
Free Spooling Clutch:	Turn
Fairlead:	Roller
Overall dimensions:	14.84" x 5.05" x 4.84" (377mm X 128.2 mm X123 mm)
Drum size:	Ø 2.24" x 4.72" ( Ø 57mm x 120 mm)
Rope:	Ø 1/4" x60' (Ø 6.4mm x 15.3 m)
Mounting bolt pattern :	6.57" x 2.99"( 167(L) mm x 76 (W) mm)

12 DC Performance specs (First layer of drum)

Line pull	Line speed	Motor	Pull by layer
lbs. (kg)	ft/min (m/min)	Current	Layer/Lbs.(kg)
0	17.4 (5.3)	20 amps	1/6000 (2722)
500 (227)	15.4 (4.7)	40 amps	2/4992 (2264)
1000 (454)	14.1 (4.3)	60 amps	3/4274 (1937)
1500(680)	12.5 (3.8)	80 amps	4/3766 (1708)
2000 (907)	11.8 (3.6)	100 amps
2500 (1134)	10.8 (3.3)	115 amps
3000 (1361)	10.2 (3.1)	140 amps
3500 (1588)	9.5 (2.9)	150 amps
4000 (1814)	8.5 (2.6)	175 amps
4500 (2041)	7.9 (2.4)	185 amps
5000 (2268)	7.2 (2.2)	205 amps
5500 (2495)	6.6 (2.0)	220 amps
6000 (2722)	5.9 (1.8)	240 amps

Multiple order qty:30
G.W/N.W:14.22/12.42kg(1PC/CTN)
Shipping Carton Size:46*32*18cm(1PC/CTN)
FAQ
1.What's your product range?
Electric winch
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry .
3.How can I get a sample to check your quality?
After price confirmation, If you need the samples, you need pay the express fee and the sample cost
4.What about the lead time for mass production?
we can sure within 30-35 days delivery time, but depends on the quantity !
