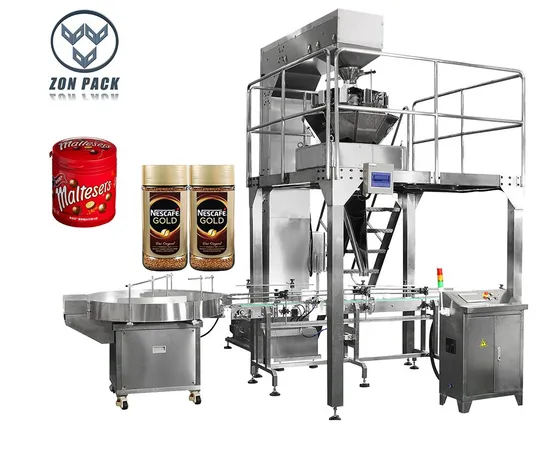

High Speed Candy Automatic Packing Weighing Jar Bottle Filling Line
| US$12,000.00-18,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZH-BF
Type
Weighing-type Filling Machine
Automatic Grade
Fully Automatic
Material Type
Granule,Powder,Solid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Hopper
Dosing Device
Multihead Weigher
Filling Principle
Gravitational
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Rotary,Linear
Packaging
Can, Case, Jar, Bottle
Packaging Material
Plastic, Glass
Service
Online/ on Site
Packing Speed
2400bph
Function
Weighing, Filling, Capping,Coding
Material
304ss
Transport Package
Wooden Case
Trademark
ZON-PACK
Origin
China
HS Code
8423301010
Production Capacity
120 Sets/Month
Packaging & Delivery
Package Size
1800.00cm * 1200.00cm * 1200.00cm
Package Gross Weight
2000.000kg
Product Description
Product DescriptionIt is suitable for weighing /filling /packing for different products, such as nuts / seeds/candy /coffee Beans , Even can count / weighing packing for the vegetables / Laundry beads / Hardware into Jar / bottle or even case
| Technical Specification | |
| Model | ZH-BC10 |
| Packing speed | 20-45 Jars/Min |
| System output | ≥8.4 Ton/Day |
| Packaging accuracy | ±0.1-1.5g |
| For target packing, we have weighing and counting option | |
| Technical Specification |
| 1.This is automatically packing line , just need one operator, save more cost of labor |
| 2. From Feeding / weighing (Or counting ) / filling /capping /Printing to Labeling , This is fully automatic packing line , it more efficiency |
| 3. Use HBM weighing sensor to weighing Or Counting product , It with more high accuracy ,and save more material cost |
| 4. Using fully packing line , the product will packed more beautiful than Manual packing |
| 5.Using fully packing line , product will be more safe and clear in the packaging process |
| 6.Production and cost will be more easy to control than manual packing |
| Working Process Of Whole Packing Line | ||
| Item | Manchine name | working content |
| 1 | Feeding Table | Collect the empty jar / bottle /Case, make it line up, and waiting for the filling one by one |
| 2 | Bucket Conveyor | Feeding product into Multi-head weigher continuously |
| 3 | Multi-head Weigher | Use high combination from multi weighing heads to weighing or counting product with high accuracy |
| 4 | Working Platform | Support the Multi-head weigher |
| 5 | Filling Machine | We have a Straight filling machine and Rotary Filling machine option , Filling product into jar / bottle one by one |
| 6 (Option) | Capping Machine | Lids will line up by conveyor , and it will capping automatically one by one |
| 7 (Option) | Labeling Machine | Labeling for the Jar/ bottle /case due to your demand |
| 8 (Option) | Date Printer | Print the date or QR code / Bar code by printer |
