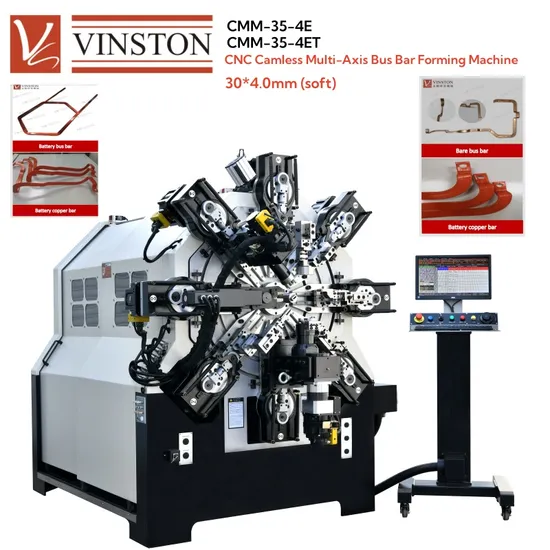

CNC Camless Multi-Axis Bus Bar Forming Machine 30.0*4.0mm Soft Material

Product Description

Product Paramenters

MODEL		CMM-35-4E
Wire Diameter		30.0 * 4.0mm (soft material)
Max.Wire Feed Length		Infinite length
Number Of Axes		13 axes (standard with servo scissors)
Power		51.7KW
Voltage		380V
Software		Pentium Industrial Computer/Intel
Voltage Regulator Power		45KAV
Robotic Control System		Standard configuration
Depth		2200mm
Width		1760mm
Height		2100mm
Machine Weight		3800KG
The above configuration parameters are subject to change without prior notice, please refer to the actual situation.

---------------------------------------------------------------------------------------------------
Contact us for more information
Product Description

Detailed Photos

Samples
Installation Instructions

Packaging & Shipping
Company Profile
Since the establishment of the VINSTON brand in 2001, our machines have help the manfacturing industry in more than 20 countries.
We strive to provide quality machinery and excellent customer service. Commited to solving customer application problems, our R & D is constantly at work to provide the next generation of machinery that encompasses support for a larger array of designs and builds. With sales and support centers in strategic locations on four continents, VINSTON provides the world with wire manufacturing solutions.
VINSTON is also a professional manufacturer of CNC Multi-Axis spring and bending machinery for all types of bus bar used in the electrical vehicle and other power distribution industries. We adopt state of the art servo control technology and integrate them into spring and bus bar production.
VINSTON is the first manufacturer in China to modify camless machinery architecture to facilitate the manufacturing of bus bars. Multiple domestic and international patents have been incorporated into the updated product line.
The VINSTON product line provides high accuracy, high efficiency, and low energy consumption among other benefits.




Certifications
---------------------------------------------------------------------------------------------------
Contact us for more information
After Sales Service
We offer remote free technical support via email or phone. Alternatively, upon customer request, our supplier can dispatch technical personnel to the customer's factory for on-site technical support. However, the customer is responsible for the expenses of technical personnel located outside China.
Customers may also send their own technical personnel to Vinston factory for free training.
The complete machine is covered by a one-year warranty. During the warranty period, non-artificially damaged parts can be replaced free of charge.
After the warranty period expires, damaged parts need to be repurchased, and all associated costs will be borne by the customer.
FAQ
Q1: What is the MOQ?A2: One set.Q2: What is the payment term?A3: 30% deposit ,70% before the shipment.Q3: What is the delivery time?A4: 30-50 working days after receiving deposit.Time for setting tooling and adjusting for samples are not included.
