Beam CNC Automatic Drilling Machine Bhd1206A H Beam U-Beam Drilling Equipment Steel Structure Drilling Line Beam Processing Three Spindle Drilling

Product Description

Product parameters
Technical Specification of BHD1206A/3
1. Size of workpiece
1.1 H-Beam: web height H: 150 ~ 1250mm flange width B: 75 ~ 600mm
1.2 U-Beam: web height H: 150 ~ 1250mm flange width B: 75 ~ 300mm
1.3 Max. thickness: 80mm
1.4 Length:15m(according the customers)
2. Drilling case
2.1 No.: 3
2.2 Max. drilling dia: emented carbide: ¢30mm
high speed steel : ¢40mm
2.3 hole of spindle: BT40
2.4 motor power of spindle: 3×11KW
2.5 rotation speed of spindle(stepless adjustable):0~2000r/min
3. CNC axes
3.1 No. of axes: 6
3.2 Servo motor power of feeding axes: 3×2KW
Servo motor power of positioning axes: 3×1.5KW
3.3 Moving speed of positioning axes: 0 ~ 10m/min
Moving speed of feeding axes: 0 ~ 5m/min
3.4 Stroke of width checking: 1100mm
Stroke of web checking: 290mm
4. Carriage
4.1 Servo motor power of carriage: 5 KW
4.2 Max. feeding speed: 20m/min
4.3 Max. feeding weight: 10t
5. Atomization cooling system
5.1 No. of nozzle: 3
5.2 pressure of compressed air: 0.8Mpa
5.3 cooling way: internal cooling & external cooling
6. overall dimension(L×W×H) : approx. 6.0×1.6×3.4m
7. weight: approx. 8000Kgs
8. working environment:
Working power: Three phase four wire system 380±10%V 50±1HZ
Control power: 220±10%V 50±1HZ
Operate power: 24V DC
Working temperature: 0ºC ~ 40ºC
Humidity of environment: ≤75%

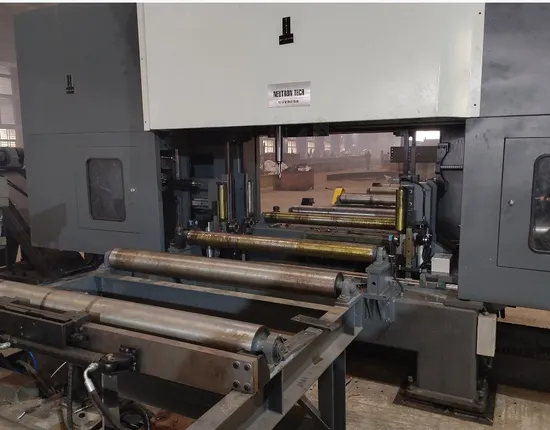

Product display
Customer visit
Certifications
Company information
Our service
Pre-sale Service
1. We have full stock, and can deliver within short time. Many styles for you to choose.
2. OEM and ODM order are accepted
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
4. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
5. We have rich experience of design, manufacture and sell hardware products, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-7 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please contact with us freely by E-mail or Telephone.
Packaging&shipping
FAQ:
Q: How can I get a quotation?
A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephon
Q: When can you arrange shippment?
A: We usually arrange shippment in 10-30days
Q: Can you provide training for operation CNC machines?
A: Yes, free training in our factory is available.
Q: What you can do if my machines have problems?
A: a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
Q: How about your price?
A: Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q: What's your warranty terms?
A: We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine's bill of lading date. Extended warranty is available at the time of purchase. Please contact your Z-MaT sales representative for details .
Q: What's the delivery time, and what's the package?
A: Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
