New CNC Car Mat Oscillating Knife Cutting Machine/ Carpet Machine

Product Description

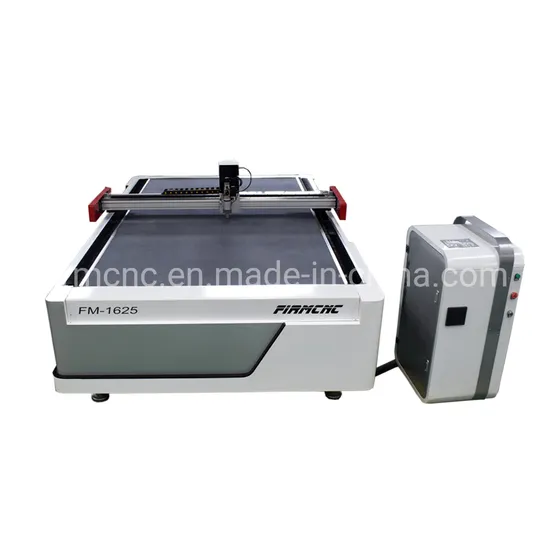

New CNC Car Mat Oscillating knife cutting machine/ carpet machine
1625 round knife cutting machine with auto feeding worktable, equipped with double knives-one for punching and one for cutting(various shapes). As with auto feeding worktable, so it can save much labor cost. Besides, equipped with auto rectifying deviation system, it can help to keep in high working precision, greatly improve the efficiency. Widely used in sofa, curtain, table cloth etc. industries.
Machine in workshop
Features
1.Japanese Original Servo Motors Stable. No oscillation. Accurate. High speed.
2.Safety Devices. Four directions of the fuselage are equipped with infrared safety sensor and emergency stop switch.
3.High Frequency Cut Head. Match different knife heads to suit different cutting materials.
4.Welded Type Sturdy Bracket. Adopt welding structure with high stability
5.Auto Rectify Deviation Device. Over-format continuous cutting, achieve precision feed materials.
6.Automatic Typesetting. Optimize the path and savematerial.
Technical parameters

Model	FM1325/ FM1625/ FM2030 optional
Working area	1300*2500mm/1600*2500mm/2000*3000mm
Rated power	11KW
Fixed mode	Flate plate table /auto feding plate optional
Multifunctional heads optonal	Vibration knife Circular knife Punching knife Oblique knife Pen Punch roller Milling knife Projector and camera optional
Safety device	Using infrared sensors, responsive, safe and reliable.
Translational velocity	800-1200mm/s
Cutting speed	200-800mm/s(according to different cutting materials)
Cutting thickess	≤22mm(according to different cutting materials)
Cutting material	Leather, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber
Repated accuracy	≤0.1mm
Capacity	2GB
Transmission system	imported(Digital servo motor, linear guide,aynchronous belt, ball screw)
Instruction system	HP-GL compatible format
Control system	TC6828(AOL custom made)
Voltage	380V±10%
Other configuration	Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump

Applicable industries
Advertising,packaging,composite materials,sporting goods,bags,sealing gaskets,textile and garment,leather,shoes,bags handbags,printing,automotive interior air chairs,lamps and lanterns design of plastic products,paper products,low thickness of flexible material cutting,etc.
Applicable materials
Leather,sticker,cardboard,Plastic box,corrugated cardboard,film,foam board,acrylic board,rebound rubber,rubber cloth,gasket material,garment cloth,footwear material,bags materials,non-woven fabrics,
carpets,sponge,PU,EVA,XPE,PVC,PP,PE,PTFE,ETFE,and composites,whose thickness of above materials is below 22 mm.
Company Information
JINAN FIRMCNC EQUIPMENT CO.,LTD the professional cnc router and laser cutting machine manufacturer, which is located in Jinan city ,China
We started to sell cnc machine in China since 2009 ,and then start our business abroad since 2013 , Our machine sells well in global area, like the North America, Europe, Middle East , etc.
Our machine includes : Woodworking cnc router , Stone engraving machine , Metal mould making machine , 4 axis cnc router , 5 axis cnc router , EPS processing machine , Co2 laser cutting and engraving machine , Fiber laser cutting machine , Laser marking machine , Plasma cutting machine
Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
Our Services
PRE-SALES SERVICE
* In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products.
* Every machine must be tested before delivery, all of them are absolutely qualified.
AFTER-SALES SERVICE
* User manual and Installation video will be sent to you together with machine.
* Provide online technical support, and, the engineer can be sent to your local to install or adjust if necessary.
* 24 months guarantee of the whole machine.
* 12 months warranty for Main parts(excluding the consumables and belongs to the user irregularities operating), shall be changed free of charge if there is any quality problem during the warranty period.
* Provide the consumable parts at an agency price when you need replacement in future. Customer visit factory
FAQ
Q1: I knew nothing about machine, How can I get the best one for me?
Pls you tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We'll send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: How long is the delivery time?
For standard machines, it would be 7-10 workdays; For non-standard machines and customized machines according to your specific requirements, it would be 20 to 30 workdays.
Q5: Are you a Factory or Trading company?
We're a professional manufacturer with export license.
If you have any interest pls feel free to contact me, the most suitable machine and best price will be provided asap.
