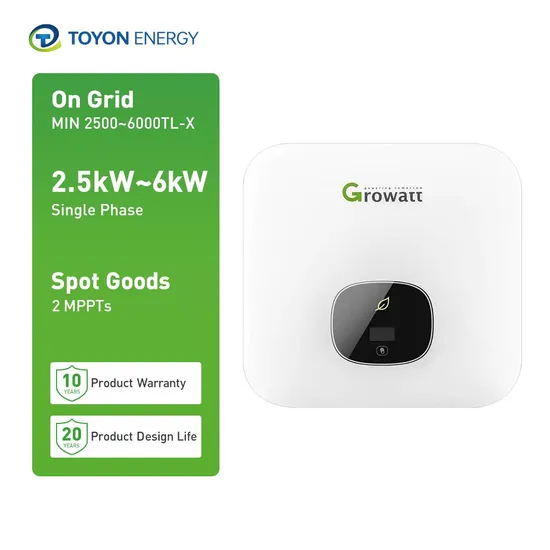

Growatt PV Inverter Min 2500-6000tl-X on Grid Solar Inverter for Hot Sale 2.5kw Inverter

Product Description

Product Description

1. Maximum efficiency 98.4% 2. Dual MPP trackers 3. Type ll SPD on DC side 4. Supports export control 5. Touch key and OLED display 6. Data storage up to 25 years The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with us for other possible system architectures depending on your requirements. The WiFi/GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.

Product Parameters

Datasheet	MIN 2500TL-X	MIN 3000TL-X	MIN 4200TL-X	MIN 5000TL-X	MIN 6000TL-X
Input data (DC)
Max. recommended PV power	3750W	4500W	6300W	7500W	9000W
Max. DC voltage	500V	500V	550V	550V	550V
Start voltage	100V
Nominal voltage	360V
MPPT voltage range	80V-500V	80V-500V	80V-550V	80V-550V	80V-550V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1
Max. input current per MPP tracker	13.5A*
Output data (AC)
Nominal AC voltage	230V (180-280V)
Max. output current	11.3A	13.6A	19A	22.7A	27.2A
Adjustable power factor	0.8leading…0.8lagging
THDi	<3%
AC grid connection type	Single phase
Efficiency
MAX. efficiency	98.2%	98.2%	98.4%	98.2%	98.2%
European efficiency	97.1%	97.1%	97.5%	97.5%	97.5%
MPPT efficiency	99.9%
Protection devices
DC reverse polarity protection	YES
DC switch	YES
AC/DC surge protection	Type III / Type II
General data
Dimensions (W / H / D)	375/350/160mm
Weight	10.8KG
Cooling	Natural convection
Protection degree	IP65
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Warranty: 5 / 10 years	Yes/Optional

Products SeriesOff Grid Inverter3KW/5KWSingle Phase 220-240V 50/60HzUp to 6 units in parallelOn Grid Inverter3-6KW2 MPPTs
Single Phase 220-240V 50/6HzOn Grid Inverter15-40KW3/4 MPPTs
Three Phase 380-415V 50/6HzOn Grid Inverter50-70KW3 MPPTs
Three Phase 380-415V 50/6HzOn Grid Inverter50-250KW6-10 MPPTs
Three Phase 380-415V/460-500V 50/6HzCertifications
Projects Case
Packaging & Shipping
Company Profile

Anhui Tongyuan Environment Energy Saving Co., Ltd. (stock code: 688679) was established on April 15,1999. It was successfully listed on the Science and Technology Innovation Board of the Shanghai Stock Exchange on December 25, 2020. The company is positioned as a "one-stop environmental solution provider" and is committed to providing customers with leading ecological and environmental technology services in China. Toyon Energy Co., Ltd is one business unit of Tongyuan Environment that focuses on the field of new energy, committed to promoting the transformation of traditional energy to green energy. Toyon's business covers residential, commercial, landfill + photovoltaic composite projects, wind power, charging piles, energy storage and other diversified fields, while providing multi scenario integrated application solutions for light storage. Through continuous innovation and technological upgrades, Toyon can provide customers with efficient, reliable, and environmentally friendly new energy products and services, making a positive contribution to achieving sustainable development.

FAQ1.What main products can you provide? We can provide many series of solar products,mainly producing the solar panels, solar inverters,power wall,lithium ionbatteries,gel batteries and also all in one solar system solution according to your needs. 2. How is your technical support? We can provide lifetime online support through WhatsApp/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime. 3. What about the lead time? We can always deliver within 5-15 working days.The common products we always have the stock, it can be sent out within 15 days. While the big order needs to negotiate the finish production time and promise it to our customers. 4. Can you provide OEM service? Yes, as a professional solar system manufacturer, we can provide customer-made service with OEM and on-site installation comprehensive support, and after-sales services. 5. How can we guarantee quality? We can provide a pre-production sample before mass production and also final inspection before shipment. We can also provide 24-hour after-sales service. Regardless of the time difference, we will solve the problem for you as soon as possible. 6. What's the payment term? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.Accepted Payment Type: T/T, L/C, PayPal.
