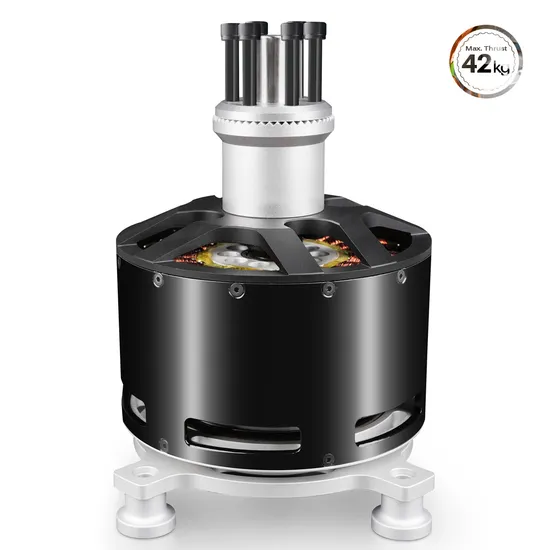

Freerc Motor 12090 40kg Thrust BLDC Motor for DIY Manned Giant Aircraft Single Seat Aircraft and Big Multi-Copter Drone
Basic Info.
Model NO.
12090
Function
Driving
Casing Protection
Explosion-Proof Type
Number of Poles
40
Structure and Working Principle
Brushless
Type
Z4
Certification
CE RoHS
Brand
Evcraft
Brand Name
EV Craft
Model Number
Zero-G 12090
Max Thrust
42kg
Motor Dimension
120mm X 90mm
Motor Weight
2.8kg
ESC
22s 150A
Propeller
Ah-51
Voltage
79V
Curent
350A
Effiency
89%
Rated Power
14kw
Peak Power
30kw
Transport Package
Foam Box with Carton Box
Specification
350mm*400mm*300mm
Trademark
EVCRAFT
Origin
Dongguan Guangdong
HS Code
8503009090
Production Capacity
5000PCS/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 25.00cm
Package Gross Weight
4.000kg
Product Description
| Item | Value |
| Warranty | 3 monthsWarranty |
| Place of Origin | China |
| Guangdong | |
| Brand Name | EV CRAFT |
| Model Number | EV CRAFT-H23850 Propulsion System |
| Usage | Heavy lift drone, cargo drone, multi-rotor drone, paramotor, paraglider, VTOL drone, search and rescue drone. |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Commutation | Brushless |
| Protect Feature | Explosion-proof |
| Efficiency | 89% |
| Dimension | 238mm x 50mm |
| KV Availability | 27 / 35 / 45 / 60 (Customizable) |
| ESC | 24S 300A |
| Max. Torque | 80N.m |
| Max. Thrust | 100kg |
| Max. RPM | 2420 |
| Max. Voltage | 100V |
| Peak Current | 300A |
| Propeller | AH-55 |
| Max. Power | 20KW |
| Lead | 14 AWG silicone wire |
| Weight | 6.6kg |
| Inside The Package | Motor, ESC(motor controller), propeller |
| throttle(%) | U(V) | I(A) | N(RPM) | F(KG) | T(N.M) | Motor output power(W) | System input power(W) | Motor efficiency | Propeller force efficiency(G/W) | System force efficiency(G/W) |
| 0 | 95.1 | -0.1 | 218.4 | -0.1 | 0.0 | 8 | -7.4 | NaN | NaN | NaN |
| 10 | 94.7 | 0.2 | 102.1 | 0.2 | 0.2 | 2 | 19.8 | NaN | Inf | NaN |
| 15 | 94.8 | 1.4 | 356.4 | 2.0 | 2.0 | 74.1 | 131.1 | 61.80% | 26.956 | 16.674 |
| 20 | 94.7 | 3.7 | 543.6 | 4.7 | 4.0 | 229.9 | 348 | 66.50% | 20.283 | 13.488 |
| 25 | 94.7 | 7.1 | 710.6 | 7.9 | 6.6 | 487.4 | 669.8 | 72.90% | 16.335 | 11.893 |
| 30 | 94.6 | 12.0 | 872.3 | 11.8 | 9.7 | 883 | 1133.7 | 77.90% | 13.364 | 10.399 |
| 35 | 94.5 | 19.6 | 1038.7 | 17.0 | 13.8 | 1503 | 1851.1 | 81.20% | 11.348 | 9.185 |
| 40 | 94.4 | 29.7 | 1197.2 | 23.0 | 18.6 | 2335.5 | 2801.6 | 83.40% | 9.895 | 8.23 |
| 45 | 94.2 | 43.1 | 1362.6 | 29.9 | 24.2 | 3453.6 | 4059.9 | 85.10% | 8.693 | 7.359 |
| 50 | 93.9 | 59.3 | 1532.3 | 36.9 | 29.9 | 4797 | 5569.3 | 86.20% | 7.731 | 6.623 |
| 55 | 93.6 | 82.1 | 1699.7 | 46.3 | 37.6 | 6691.1 | 7682.1 | 87.20% | 6.991 | 6.029 |
| 60 | 93.2 | 109.7 | 1852.5 | 56.0 | 45.7 | 8860.5 | 10228.2 | 86.80% | 6.395 | 5.482 |
| 65 | 92.8 | 136.8 | 1992.9 | 64.5 | 52.8 | 11011.9 | 12697 | 87.00% | 5.947 | 5.086 |
| 70 | 92.3 | 171.6 | 2121.6 | 74.7 | 61.4 | 13625.9 | 15839.6 | 86.40% | 5.608 | 4.723 |
| 75 | 91.8 | 205.3 | 2253 | 82.7 | 68.2 | 16068.5 | 18855 | 85.50% | 5.246 | 4.391 |
| 80 | 91.4 | 237.4 | 2329.7 | 90.4 | 74.2 | 18093.9 | 21695.6 | 83.70% | 5.059 | 4.175 |
| 85 | 91.0 | 263.5 | 2380.3 | 96.1 | 78.5 | 19547.3 | 23971.8 | 81.80% | 4.951 | 4.017 |
| 90 | 90.8 | 279.4 | 2420 | 97.9 | 80.4 | 20350.1 | 25373.1 | 80.50% | 4.852 | 3.865 |
