Large Mining Quarrying 98 Ton Excavator Swe950e-3h Bucket Capacity Payload 5.5-7.5 M3 Backhoe Operating Weight 98 Ton Digging Force 373 kN Breakout Force 495 kN

Product Description

Large mining quarrying 98 ton excavator SWE950E-3H bucket capacity payload 5.5-7.5 m3 backhoe Operating weight 98 ton digging force 373 kN breakout force 495 kN
Product Description

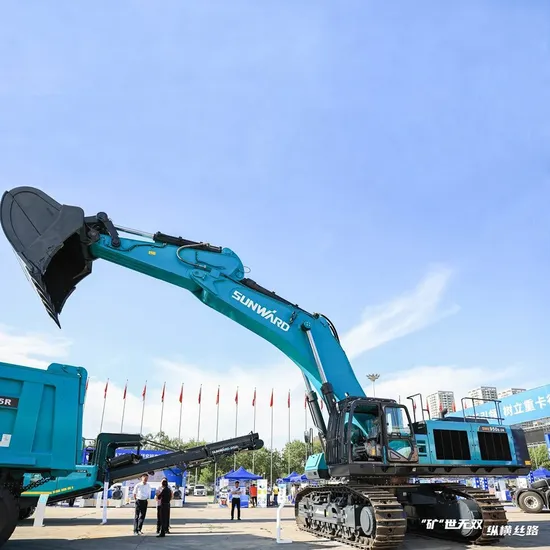

SUNWARD SWE 950E
Fast and precise movement
The SWE950E-3H is equipped with the long-lasting and proven VOLVO PENTA TAD1643VE-B diesel engine specifically designed to withstand extreme outside temperatures and high altitudes with low atmospheric pressure. The SWE950E-3H is built for extreme conditions. Fast cycle time Like all other our mining excavators, the SWE950E-3H uses a closed-loop swing circuit. The main hydraulic circuit comprises a combination of three independent main valves fed by three working pumps, providing unrivaled flexibility of attachment control and force distribution, while allowing full oil flow integration for fast movement and lowest cycle times. Precise machine motions The SWE950E-3H's hydraulic control system is optimized in order to improve combined machine motions. The ergonomically mounted joysticks on the suspended seat armrests allow the operator to precisely position the machine. High digging and lifting capabilities High digging forces & power-oriented energy management Designed for the best mechanical force distribution, the production-tailored attachment delivers tough digging and lifting forces. Integrating tailor-made cylinders and a wide range of buckets with mining optimized GET, the SWE950E-3H's attachment ensures the highest forces, easy bucket penetration and high fill factor to perform even in the most demanding conditions
Advanced machine monitoring
- 10.5" LCD color screen
- Information interface to operator
- On board diagnostics to service staff
- Real text information
- Long term data storage for maintenance
First class service arrangements
Service friendly design allows easy and fast maintenance for maximum uptime:
- Service from one side
- Large catwalks and walkways
- Refillable grease tanks instead of drums to be changed
- Centralized single-line lubrication system with bucket included
Comfort-oriented cab design
- Tinted laminated safety glass
- Armored front window
- Adjustable air suspended seat - A/C with dust filter in fresh air / recirculated
- Pressurization to prevent dust penetration (optional)
- Optional Operator Comfort Kit: sun blinds, bottle cooler, reading light, premium seat with cooling/airing system, electronic weight adjustment
- Pre-heating system (optional)
Commitment to employees safety
- Safe and protected access to the components
- Major components centralized to be easily accessible
- Optional ground-level fluid maintenance hub
- E-stops located for the operator and maintenance staff
- FOPS: Falling Object Protective Structure (optional)
Product Parameters
Technical Specifications

Operating weight	t	93.8
Standard bucket capacity	m3	5.5 (4.5-7)
Engine
Brand		VOLVO PENTA
Model		TAD1643VE-B
Type		Electric con tol, DI, veter-cooling, 4-stroke
Power	kW/rpm	565/1900
Maximum torque	Nm/rpm	3240/1300
Displacement	L	16.12
Hydraulic System
Type of main pump		2 Variable plunger pump
Maximum flow of main pump	L/min	2x504
Sy sten pressure	MPa	31.4/34.3
Ty p of pilot pump		1 Gear pump
Maximum flow of pilot pump	L/min	35
Pressure of pilot pump	MPa	3.9
Performance
Rotating speed	rpm	6.5
Traceling speed	km/h	3.9Z2.4
Maximum gradeability	o	35
Width of track link	mm	650
Ground specific pressure	kPa	126
Tank Volume
Fuel tank	L	1300
Hydraulic oil tank	L	650

a	Max. digging height	mm	12160
b	Max. unloading height	mm	8030
c	Max, digging depth	mm	7240
d	Digging depth (2.44m horizontal)	mm	7100
e	Max. vertical digging depth	mm	6485
f	Max. digging distance	mm	12490
g	Max. ground digging distance	mm	12145
h	Min. front swing radius	mm	5625
	Digging force of bucket (ISO supercharging)	kN	495
	Digging force of arm (ISO supercharging)	kN	373

Boom length		mm	7100	G	contact length of track	mm	4945
Arm length		mm	2950	H	Length of track	mm	6205
A	Total length	mm	13885	I	Track gauge	mm	2750/3380
B	Tbtal height	mm	4995	J	Width of track	mm	3400/4030
C	Total width	mm	3475	K	Width of track link	mm	650
D	Grou ncfclearance of counterweight	mm	1645	L	Cab height	mm	3615
E	Mini mum ground clearance	mm	925	M	Height of machine hood	mm	3500
F	laiJswinjradiiis	mm	4850	N	Width of turntable	mm	3475

Our Advantages
Besides this large mining excavator, we could supply Surface drill rigs, including top hammer ones and DTH ones.
and off road / haul trucks or other brands excavators, crushers etc., as below,
Any more question, please feel free to contact us.
