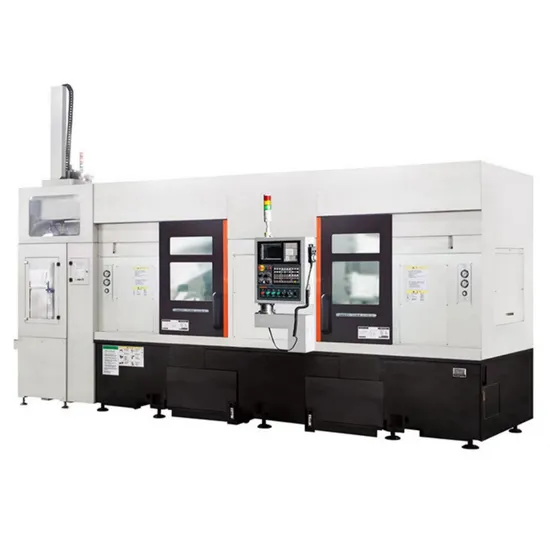

Opposite Double Spindle CNC Lathe Turning Center of MW15

Product Description

Item		Unit	MW15
Range	Max Swing	mm	Φ450
	Max Machining Diameter	mm	Φ280
	Max Machining Length	mm	300
	Chuck Face to Thimble	mm	320
	The X/Z axis Range	mm	160/300
	X/Z axis Fast Feed	m/min	30/30
Main spindle	Spindle Size	-	JIS A2-5
	Max Spindle Speed	rpm	4000
	Main Motor Power	kW	5.5(x2)
	Main Spindle Through Hole	mm	Φ56
	Max Bar Machining Diameter	mm	Φ45
X/Z Rotation	X/Z Rotation	rpm	3000
Type of Tool Holder	Turret	-	12 Position Turret
	Tool Holder	mm	25x25
	Boring Bar	mm	Ø32
Coolant Tank Volume		L	150(x2)
Bed Inclination		-	30°
Dimension(L x W x H)		mm	3650x1520x1530
Weight		kg	6000

Gantry Robot
Item	Parameter
Maximum X-axis Moving Speed	180m/min
X-axis Material(beam)	Structural Steel
X-axis Guide Rail	Linear Guide Rail
Maximum Z-axis Moving Speed	150m/min
Y-axis Material(vertical Arm)	Aluminium
Z-axis Guide Rail	Linear Guide Rail
Position Accuracy	±0.05
Drive Mode	Rack and Pinion
Electric Control Mode	Servo Drive+Gear Reducer
