Small Construction Equipment Portable Concrete Batching Plant Yhzs25 Mobile Concrete Mixing Plant

Product Description

Small Construction Equipment Portable Concrete Batching Plant YHZS25 Mobile Concrete Mixing Plant
Product Description

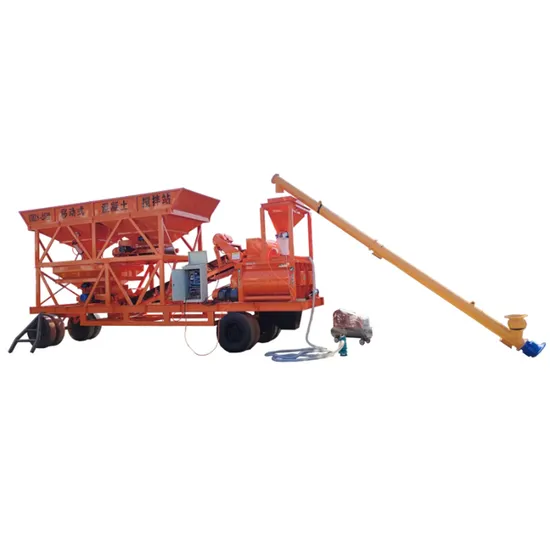

Mobile concrete batching plant is a towable mixing equipment that integrates aggregate, weighing, mixing, and transportation in one centralized towing unit. It is suitable for mobile construction of projects such as roads and bridges that require a relatively small amount of concrete.

Mobile concrete mixing station is a concrete production equipment that integrates the material storage, weighing, conveying, mixing, unloading and automatic control system of a concrete mixing station into a trailer unit. It has all the same action processes, operation methods, and maintenance as fixed automatic mixing stations. It also has unique features such as flexible mobility, quick and easy disassembly and assembly, and simple storage and management. It is the best model for mobile construction of highway, railway, bridge, port, hydropower and other projects.
Concrete batching plant is a joint device used for centralized mixing of concrete, also known as concrete prefabrication field.
Due to its high degree of mechanization and automation, its productivity is also high, and it can ensure the quality of concrete and save cement.
It is often used in large and medium-sized water conservancy, power, bridge and other projects with large concrete engineering volume, long construction period and concentrated construction site.
With the development of municipal construction, the mixing station that adopts centralized mixing and provides commercial concrete has great advantages, so it has been rapidly developed, and has created conditions for promoting concrete pumping construction and realizing the joint operation of mixing, conveying and pouring machinery. Detailed Photos

Concrete mixing station is mainly composed of five systemsincluding mixing host,
material weighing system,
material conveying system,
material storage system
and control system, a
nd other ancillary facilities.
The main principle of work is to use cement as the binder, mix and mix raw materials such as sand, gravel, lime, and coal slag, and finally make concrete, which is put into construction and production as wall material. Since it was put into use, the concrete mixing station has always played an important role in my country's construction and building materials industry. Of course, this is also determined by the superior characteristics of the concrete mixing station itself.

Additive scale

Water scale

Cement scale

Water inlet pipe for the water scale

Water inlet pipe for the mixer

Load sensor

Pneumatic control

Aggregate bins

Weighing bin

Screw conveyor

Belt conveyor

Vibrator

Air compressor

Control table

1. Chassis
2. Aggregate Hopper
3. Weighing System
4. Brackets
5. Conveying System
6. Adjustable Brackets
7. Mixer
8. Cement Water and Additives
9. Screw Conveyor
10. Cement Silo
Product Parameters

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120	HZS150	HZS180
Discharging Capacity (L)	500	750	1000	1000	1500	1500	2000	2500	3000
Charging Capacity(L)	800	1200	1600	1600	2400	2400	3200	4000	4800
Maximum Productivity(m³/h)	25	35	50	60	75	90	120	150	180
Charging Model	Skip Hopper	Skip Hopper	Skip Hopper	belt conveyor	Skip Hopper	belt conveyor	belt conveyor	belt conveyor	belt conveyor
Standard Discharging Height(m)	1.5~3.8	2~4.2	4.2	4.2	4.2	4.2	3.8~4.5	4.5	4.5
Number of Species of Aggregate	2~3	2~3	3~4	3~4	3~4	4	4	4	4
Maximum Aggregate Size(mm)	≤60mm	≤80mm	≤80mm	≤80mm	≤80mm	≤80mm	≤120mm	≤150mm	≤180mm
Cement/Powder Silo Capacity(set)	1×100T	2×100T	3×100T	3×100T	3×100T	3×100T	4×100T or 200T	4×200T	4×200T
Mixing Cycle Time(s)	72	60	60	60	60	60	60	30	30
Total Installed Capacity(kw)	60	78.5	111	145	110	198.06	210	230	288

Model	YHZS25	YHZS35	YHZS50	YHZS60	YHZS75	YHZS90
Theoretical productivity (m³/h)	25	35	50	60	75	90
Standard discharge height (m)	1.5-3.8	1.5-3.8	2.7-3.8	3.8	2.7-3.8	3.8
Working cycle time (s)	72	72	72	60	72	60
Total installed capacity (kw)	50.25	50.25	115	105	120	145
Model	JS500	JS750	JS1000	JS1000	JS1500	JS1500
Model	PLD800	PLD1200	PLD1600	PLD1600	PLD2400	PLD2400
Air compressor model	1.0-7	1.0-7	1.0-7	1.5-7	1.0-7	1.8-7
Rated exhaust volume (m³/min)	1.67	1.67	1.67	1.67	1.85	1.67
Rated exhaust pressure (MPa)	0.8	0.8	0.8	0.8	0.8	0.8
Motor power (KW)	5.5	5.5	5.5	7.5	11	11

Foundation-free 500 forced mixing plant Configuration List
Item No.	Item Name		Models and Specifications	QTY
1	Mixer	Double-horizontal forced stirring host	JS500	1set
		gearbox		1set
		motor	18.5KW	1set
		Air unloading	100X250	1piece
		Electric lubricating system	380V/1KW	1set
		High Strength Liner	160mm	1set
		Host frame structure	180# National standard channel steel	1set

YHZS series of mobile concrete batching plant
Model	YHZS25	YHZS35	YHZS50	YHZS75
Production capacity (m3/h)	25	35	50	75
Concrete mixer (twin-shaft mixer)	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate Batcher	PLD800	PLD1200	PLD1600	PLD2400
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	1	1	1	1
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Panel	Computer	Computer	Computer
Total power (kw)	61	76	85	95
Total weight(T)	13	15	19	22

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are one of the largest concrete batching plant manufacturers in China. The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.

Packaging & Shipping

Certifications
Our Advantages
Ningdu Xingye Machinery Manufacturing Co., Ltd. was established in July 2013 and is located in Xinzhongsheng Industrial Park, Ningdu County, Ganzhou City, Jiangxi Province. It is a national-level specialized new technology enterprise integrating machinery manufacturing, R&D design, trade logistics and overseas sales. It is mainly a supplier of machinery and equipment in the fields of construction, mineral mining, municipal engineering, bridges and tunnels. The company has successively held more than 20 national invention patents and independent intellectual property rights, and has a leading industry position and innovation capabilities.
We adhere to the business philosophy of "taking technological innovation as the core, product quality as the cornerstone, and customer satisfaction as the purpose", constantly explore, strengthen research and development, actively expand service areas and customer needs, and create unlimited possibilities for the company's development. The products have won wide recognition in the market for their excellent performance and reliability.
For more than 10 years since its establishment, the company has been working hard in the field of machinery manufacturing and sales. The products have been exported to more than ten countries and regions around the world, and have established long-term and stable cooperative relations with well-known companies in the United States, Singapore, Malaysia, Indonesia and other countries, and established a good brand image and market reputation.
While the company continues to grow, it actively fulfills its social responsibilities and is committed to energy conservation, emission reduction and sustainable development. The company strictly abides by national and local environmental protection laws and regulations, and continues to contribute to environmental protection and sustainable development. At the same time, we are also actively involved in various public welfare undertakings, and contribute to public welfare undertakings in the fields of society, community, environmental protection, and humanities.
The company currently has more than 100 employees. We insist on being people-oriented and attach importance to the growth and development of employees. The company has successively equipped employee dormitories, canteens, living and leisure areas, sports and fitness areas and other living facilities to provide employees with a good working environment; and customized a complete training and promotion mechanism for the entire process of the 2+3 model to enhance employees' sense of belonging, sense of accomplishment and happiness.
Looking to the future, we will continue to deepen our efforts in the fields of machinery manufacturing, R&D design, trade logistics, overseas sales, etc., increase R&D investment, and promote technological innovation and product upgrades. We will actively expand domestic and foreign markets, explore customer needs through precise market positioning and marketing strategies, and establish and enhance brand awareness at home and abroad. In the future competition, we will continue to lead the industry with outstanding technical strength and product quality.

FAQ

1. Are you a manufacturer, trading company or a third party?
We are a concrete mixing plant manufacturer 15 years experience
2.Can the machine be customized as our need, such as put on our logo?
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available. 3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It's always my pleasure, hotel booking service is available.
4. As the shipping period will take long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

5.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

6. How can i get to your factory?
We can pick you up at the airport.
7. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
9. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be
charged by you.
