Automatic Pet Molded Plastic Manufacturers

Product Description

Product Description

Features OF Automatic PET Blowing Machine From China/ Blow molded plastic manufacturers
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: less than 0.3percent.
main parameters

Item		GM-6C
Bottle type specification	Cavity	6
	Theory output	5000-6000
	Max.volume	2L
	Bottle mouth maximum overall diameter	28-38mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1.25KW
	Maximum heating power	40KW
	All electric machine installation	43KW
	Actual consumption	30.1KW
Air pressure specification	Work pressure	7-9kg/c
	Low-pressure gas consumption	1600L/min
	Blow bottle pressure	25-35kg/c
	Higher -pressure gas consumption	4000Ltr/min
Forzen water specification	Work pressure	5-6 kg/c
	Temperature range	10ºC
	Consumption	8000kcal/hr
	Forzen water flow	88L/min
Machine specification	Size of the machine	5.3x1.6x1.9
	Weight of the machine	3750kg

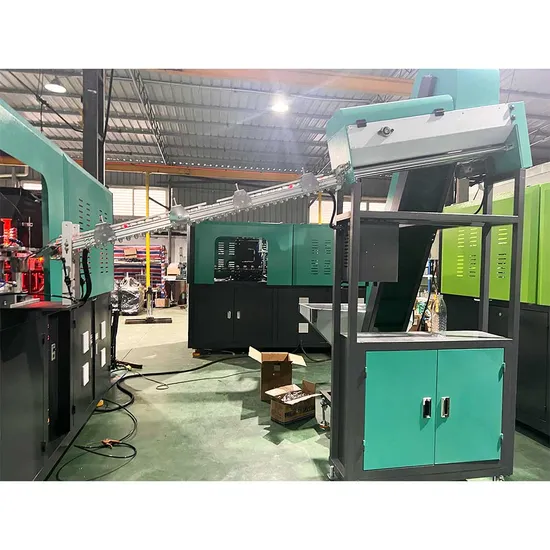

Detailed Photos
