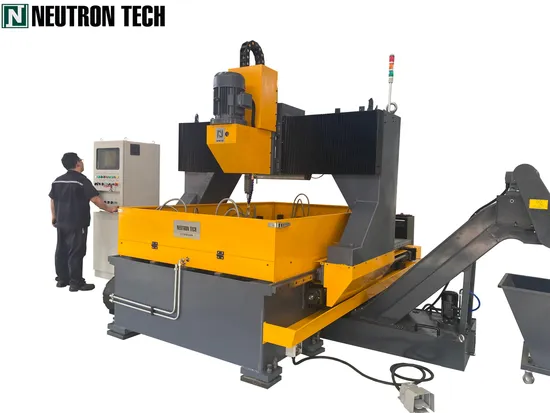

CNC Double Worktable Plate Drilling Machine Pd16c Plate Steel Structure Steel Processing Machine

Product Description

Product introduction
Product technical parameters and table

Item	Details	value
Size of work piece	Thickness	Max.80mm
	Width ×length	1000mm×1650mm one piece
		825mm×1000mm two pieces
		500mm×825mm four pieces
Axis	Quick change chuck	Morse Taper 3#,,4#
	Diameter of Drilling head	Φ12mm-Φ50mm
	Variable speed mode	Stepless speed adjustment
	rotation speed	120-560r/min
	max. feeding stoke	180mm
	Feeding	Hydraulic Stepless speed adjustment
Clamping	Clamping thickness	15-80mm
	Number of clamps	12 pieces
	Clamping force	7.5KN
	Clamping start	Foot switch
Cooling water	Type	Forced circulation
Hydraulic	clamping	6MPa(60kgf/cm2)
	Volume	100L
Air force	Air supply	0.4MPa(4kgf/cm2)
Servo Motor	Axis	5.5KW
	Hydraulic pump	2.2KW
	Cooling pump	0.25KW
	Servo motor of chip removal device	0.4KW
	Servo motor of X axis	1.5KW
	Servo motor of Y axis	1.0KW
Size	L×W×H	About 3160×3900×2780mm
Weight	Machine	4000kg
	Chip removal system	400kg
Control axis	X,Y ,Z
Distance	X	1650mm
	Y	1000mm
Max speed	10000mm/min

Other products
Company Profile Shandong neutron tech intelligent equipment co. LTDLocated in jinan lixia district, is a new trading company.
Mainly engaged in intelligent equipment and related accessories development, sales, installation, maintenance and import and export business.
Its products are widely used in iron tower, steel structure, automobile and other fields, customer groups throughout the world more than 40 countries.
The company has experienced sales staff, technical support and after-sales team, to provide customers with quality, accurate products and professional, efficient service.
Production factory
Product Packing & Delivery
Product quality certification
The company cooperation
FAQ
01.Is the product packaged in a wooden box or a cardboard box? Wooden box packaging or bare 02. Product production cycle? Each product is different, generally 15-45 days 03.A small number of products? To what extent? Different products are different, some are 3-14 days or 7-30 days 04.What is the production cycle of 04 customized products? The delivery cycle of the product is different for each product. Generally speaking, it is 20-45 days. 05. What is the core market? Indonesia, Malaysia, India, Vietnam, Thailand, Bangladesh, Pakistan, Russia, Brazil and more than 40 countries and regions around the world. 06. What are our strengths? Shandong Zhongzixing Intelligent Equipment Co., Ltd. is located in the high-tech zone of Jinan City, China. It is mainly engaged in the development, sales, installation, maintenance and import and export of smart equipment and related accessories. The customer base is spread over more than 40 countries and regions around the world. The company has experienced sales staff, technical support and after-sales team to provide customers with quality, accurate products and professional, efficient services. 07. The main products? The main products are high-speed railing molding equipment, U-shaped column forming equipment, iron tower processing equipment, steel structure processing equipment, sheet processing equipment, flange forming equipment, flame cutting machine, plasma cutting machine, laser cutting machine, hollow glass aluminum spacer Production line, hollow glass warm edge strip production line, furniture production line, CNC engraving machine, hollow aluminum strip, hollow sealant, etc. Its products are widely used in road and bridge construction, construction steel structure, electric power tower, automobile manufacturing, furniture manufacturing, decoration and decoration industries.
