Gravel Stone Symons Hydraulic Cone Crusher Machine for Quarry Mining Building Aggregate

Product Description

Product Description
CONE CRUSHER INTRODUCTION
GPC symons type stone cone crusher is developed with national patent based on international technology and innovation. It can be extensively used in metallurgical industry, building industry, road construction industry, chemical industry, diluted hydrochloric acid industry and are suitable for crushing hard and mid-hard ores and rocks, such as iron ore, copper ore, lime stone, quartz, granite and sandstone.
CONE CRUSHER FEATURES AND BENEFITS
1. Hydraulic adjustment devices. Convenient to adjust discharge opening size.
2. Cone frame is cast steel structure; High pressure points are reinforced by hard steel
3. New special design, simple and reasonable structure, smooth and stable running and low operation cost.
4. Hydraulic release system consists of several hydraulic cylinders. Easy to release jammed materials.
5. Each side of drive-shaft is equipped with roller bearings. Bearing base uses seal ring to prevent lubricating
Oil leakage.
6. "spring type" over-load protection. This release system allows unbroken materials to pass through without
Causing damage.
Product Parameters
CONE CRUSHER SPECIFICATIONS

Model	Max. Feed Size	Min. Discharge Size	Speed	Power	Weight	Capacity(t/h) in different discharge size(mm)
	(mm)	(mm)	(RPM)	(kW)	(t)	6	10	13	16	19	22	25	38	51	64
GPCC600	95	10	630	37-55	5.3		20	25	30	35	45	50	76
GPCF600	72	6	630	37-55	5.3	18	20	25	30	35	40	45	60
GPCC1000	160	13	630	90-110	10.8			80	100	135	150	175	235
GPCM1000	115	10	630	90-110	10.8		65	75	90	120	135	150
GPCF1000	80	8	630	90-110	10.8	52	62	72	78	115
GPCC1160	180	13	630	110-132	16		115	135	150	180	200	260
GPCM1160	130	10	630	110-132	16		100	110	120	135	165	175
GPCF1160	90	10	630	110-132	16		80	105	110	140
GPCC1300	200	16	610	132-160	23				150	180	200	230	310	390
GPCM1300	150	13	610	132-160	23			115	140	160	190	210
GPCF1300	102	10	610	132-160	23		90	115	145	160
GPCC1380	215	19	610	185-220	27					200	220	260	350	440
GPCM1380	160	16	610	185-220	27				155	180	200	220
GPCF1380	115	13	610	185-220	27			150	190	210	230
GPCC1500	235	22	560	220-280	37.8						265	310	420	525	580
GPCM1500	175	19	560	220-280	37.8					215	240	265	320
GPCF1500	130	13	560	220-280	37.8			180	210	235	255	275
GPCC1650	267	22	560	250-315	44.3						330	390	525	655	725
GPCM1650	203	16	560	250-315	44.3				210	250	280	300
GPCF1650	140	13	560	250-315	44.3			180	220	260	335

Note:1. The above parameters for rock loose density of 1.6 t/m3, the compressive strength < 150 mpa, moisture content < 20%;2. Processing capacity influence by uniform feeding, grain size, hardness, rock types, feeding speed etc.mm to inch conversion: 25.4millimeters=1 inchCavity: F=Fine M=Medium C=Coarse
Detailed Photos
Project Case

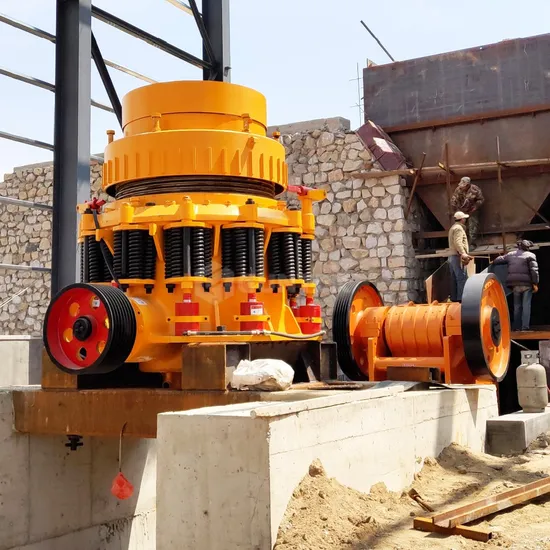

CONE CRUSHER WORKING SITE
Packaging & Shipping
Standard Export Packaging and Shipping
The products should be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting.

Sales Service
Pre-sales Service
We can provide customers with single machine or complete processing plant by our wide product range. Based on the customers' request and budget, our experts make out efficient and reliable solutions. We arrange the production strictly following customers' order. What's more, every customer has the chances to visit the factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.

After-sales Service
Our experienced technicians is available on the phone and on the internet,customer can get instance guidance. Dispatch engineers to help customer installation and train local worker to operate and maintain the equipment. Well trained and prfessional engineers are at your service home and abroad.
FAQ
To choose the appropriate model for you, we need to know the following information, when we get your requirement information, we will send you our accurate quotation soon with additional discount:
1. What's the raw materials(such as granite) and its size(mm/inch, such as 500mm)?
2. What's the discharging size? 0-5, 5-10, 10-20, 20-40mm?
3. What's the required Capacity(tons per hour or TPH)? such as100TPH, 150TPH, 200TPH, 300TPH.
4. Other special requirements.
We are one leading manufacturer of stone crusher machine in China with main products of jaw crusher, impact crusher, cone crusher, mobile, double roller crusher, hammer crusher, ball mill, vibrating feeder, vibrating screen, sand making machine and sand washer, belt conveyor, magnetic separator, brick making machine,etc.
If any question, please kindly contact us.
