Wood Sander for Plywood Production Line

Product Description

Company Profile
Shandong hummingbird Machinery Co., LTD, located in Linyi city, Shandong province, has more than 20 years of experience in machinery production and improvement.The company established Hummingbird International Trading Company in order to expand the international market. After several years of efforts, the company's main products and equipment have been exported to Southeast Asia, the Middle East, South America, Africa and other markets.Looking forward to working with you to create, share the future!

Product Parameters
Part1-H27R

Working width	40-1300mm
Working thickness	2.5-80mm
Working length	>780mm
Operation panel	Button/touch panel
Voltage	380V 50Hz
Total motors power	64,35kw
Main motors power	55kw(75kw)
Reducer motor power	7.5kw(11kw )
Lifting motor power	0.75kw
Feeding table vacuum ( Selective )	5.5kw
Brushing motor power	1.1kw
Feeding speed	20-40m/min
Working air pressure	0.6MPa
Consumplion of conpressed air	0.2m³/min
Volume of dust collection	11000m³/h
Size(L × W× H)	2790*3100*2480mm
Weight	About 7500kgs

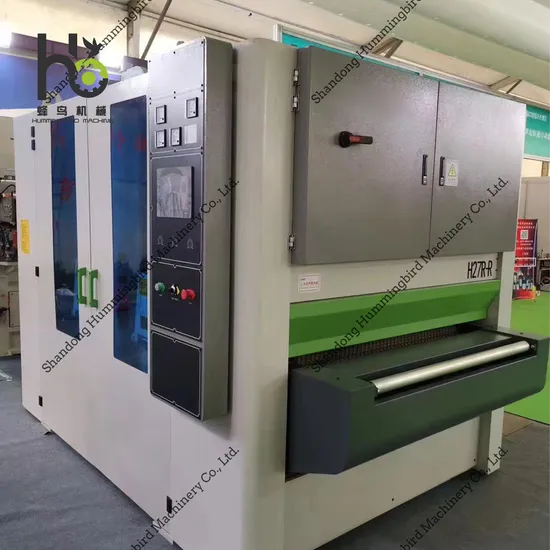

Part2 -H27R-R

Working width	40-1300mm
Working thickness	2.5-80mm
Working length	>780mm
Operation panel	Buttor /touch panel
Voltage	380V 50HZ
Total motors power	109.35kw
Main motors power	55kw,45kw(75kw,55kw)
Reducer motor power	7.5kw(11kw )
Lifting motor power	0.75kw
Feeding table vacuum ( Selective )	5.5kw
Brushing motor power	1.1kw
Feeding speed	20-40m/min
Working air pressure	0.6MPa
Consumplion of conpressed air	0.2m³/min
Volume of dust collection	18000m³/h
Size(L × W× H)	3400*3100*2480mm
Weight	About 10000Kgs

Part3 -H27R-R-P
H27R-R-P

Working width	40-1300mm
Working thickness	2.5-110mm
Working length	>780mm
Operation panel	Button /touch panel
Voltage	380V 50HZ
Total motors power	142.85kw
Main motors power	55kw.45kw.30kw(75kw)
Reducer motor power	11kw
Lifting motor power	0.75kw
Feeding table vacuum ( Selective )	5.5kw
Brushing motor power	1.1kw
Feeding speed	20-40m/min
Working air pressure	0.6MPa
Consumplion of conpressed air	0.2m³/min
Volume of dust collection	22000m³/h
Size(L × W× H)	4200*3100*2480mm
Weight	About 13000kgs

H27R-R-R

Working width	40-1300mm
Working thickness	2.5-110mm
Working length	>780mm
Operation panel	Button /touch panel
Voltage	380V 50HZ
Total motors power	157.85kw
Main motors power	55kw,45kw,45kw(75kw)
Reducer motor power	11kw
Lifting motor power	0.75kw
Feeding table vacuum ( Selective )	5.5kw
Brushing motor power	1.1kw
Feeding speed	20-40m/min
Working air pressure	0.SMPa
Consumplion of conpressed air	0.2m³/min
Volume of dust collection	22000m³/h
Size(L × W× H)	4200*3100*2480mm
Weight	About 13000kgs

H27B-P-P

Working width	40-1300mm
Working thickness	2.5-110mm
Working length	>780mm
Operation panel	Button /touch panel
Voltage	380V 50Hz
Total motors power	109.85KW
Main motors power	37kw,30kw,30kw
Reducer motor power	11kw
Lifting motor power	0.75kw
Feeding table vacuum ( Selective )	5.5kw
Brushing motor power	1.1kw
Feeding speed	20-40m/min
Working air pressure	0.6MPa
Consumplion of conpressed air	0.2m³/min
Volume of dust collection	22000m³/h
Size(L × W× H)	4200*3100*2480mm
Weight	About 12500kgs

Features

Detail Accessories
Plywood/wood core board: coarse sand belt + steel roller for thickness setting → fine sand belt + polyurethane roller for fine sanding → brush roller for deburring.
Polishing of painted board: ultra-fine sand belt for pretreatment → polishing wheel + low-speed high-precision mode → dust collection system for full dust control.
Through reasonable matching of accessories, the sanding machine can adapt to different materials and process requirements, significantly improving surface quality and production efficiency.
