High Quality Digital Monocular Binocular Advanced Compound Hospital Laboratory Biological Microscope

Product Description

Product Description Microscope
1.With Infinite optical system, kohler illumination, providing excellent optical quality and making image perfect.
2.With low and forward position coaxial focus system, focusing knobs and brightness adjustable knob within reaching location, stable integral structure, reasonable ergonomic design, making operator feel more comfortable and effective.
Product specifications

ITEMS	YM-XSP-101	YM-XSP-104	YM-XSP-106
Eyepiece	H10X, H16X	WF 10X/18mm {WF 16X}	WF 10X/18mm {WF 16X}
Objective	Achromatic 4X, 10X, 40X (S)	Achromatic 4X, 10X, 40X (S), 100X (S, OIL)	Achromatic 4X, 10X, 40X (S), 100X (S,OIL)
Viewing Head	Monocular Head	Monocular Head, Inclined 30°, Rotatable 360°	Binocular Head, Inclined 30°, Rotatable 360°,Interpupillary Distance 55-75mm
Nosepiece	Triple	Quadruple {Triple}	Quadruple {Triple}
Stage	Plain Stage with Slide Clips	Double Layer Mechanical Stage, Size: 125x115mm,Moving range: 65x20mm	Double Layer Mechanical Stage, Size: 125x115mm,Moving range: 65x20mm
Condenser	/	Abbe Condenser N.A 1.25 with Iris Diaphragm	Abbe Condenser N.A 1.25 with Iris Diaphragm
Focusing	Focusing: Separate Coarse andFine Adjustment	Coaxial Coarse and Fine Adjustment, Coarse Focusing,Range 20mm, Fine Focusing Interval 0.002mm	Coaxial Coarse and Fine Adjustment, Coarse FocusingRange 20mm, Fine Focusing Interval 0.002mm
Illumination	Disc Diaphragm, Plan-concave mirror	20W Incandescent Lamp{6V/20W Halogen Lamp, LED Light}	6V/20W Halogen Lamp{LED Light}

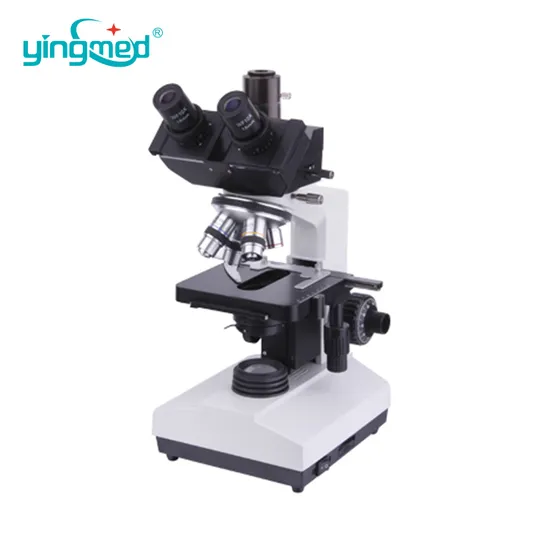

Product Picture
