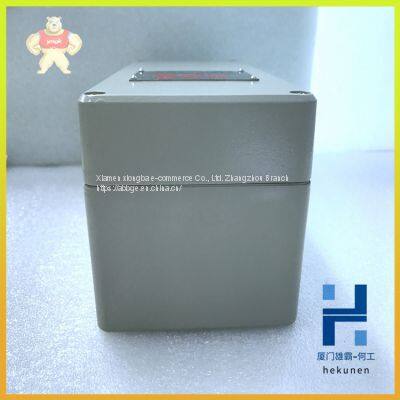

PFRA101 3BSE003911R230 ABB New original tension controller

Product Details

Product Description

Product Description
PFRA101 3BSE003911R230 ABB New original tension controller
PFRA101 3BSE003911R230 ABB New original tension controller
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
ZMC controller is debugged through zdevelop development environment, which is a very convenient programming, compiling and debugging environment. Zdevelop can establish connection with the controller through serial port, 485, USB or Ethernet.
Applications can be developed using VC, VB, vs, C + + Builder, C #, and other software. During debugging, zdevelop software can be connected to the controller at the same time, and the dynamic library zmotion.dll is required when the program runs. 1.3 product characteristics
● up to 32 axis motion control (6 pulse axis + ECAT axis / encoder axis / virtual axis). ● pulse axis output mode: direction / pulse or double pulse.
● the fastest refresh cycle of ECAT is 250us.
● support encoder position measurement and can be configured as handwheel input mode. ● maximum output pulse frequency of each axle: 10MHz
● through EtherCAT bus, it can be expanded to 4096 isolated input or output ports at most. ● axle positive and negative limit signal port / origin signal port can be configured as any input port at will. ● the maximum output current of the output port can reach 300mA, which can directly drive some solenoid valves. ● U disk interface, RS485 interface and Ethernet interface.
● support up to 16 axis linear interpolation, arbitrary spatial arc interpolation, spiral interpolation and spline interpolation. ● support functions such as electronic cam, electronic gear, position locking, synchronous follow-up, virtual shaft, etc. ● support hardware comparison output (hw_pswitch2), hardware timer, and accurate output in motion. ● support pulse closed loop, pitch compensation and other functions.
● support zbasic multi file and multi task programming.
● multiple program encryption means to protect the intellectual property rights of customers.
● power down detection and power down storage.
