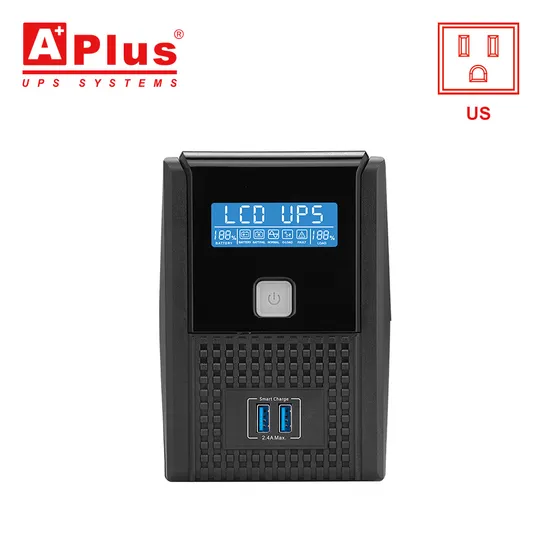

UPS Offline 800va Battery Backup System LCD Display
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
Plus5L-S800N
Protection
Overvoltage
Application
Communication
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Centralized Model
Brand
Aplus Power
Function
UPS+AVR
Transport Package
Ocean Freight
Specification
800VA/480W
Origin
China
HS Code
8504402000
Production Capacity
2500 Pieces Per Day
Product Description
Specifications:
| MODEL | Plus5L-S800N |
| CAPACITY | 800VA/480W |
| INPUT | |
| Voltage | 110/115/120Vac |
| Voltage Range | -30%, +25% |
| Frequency | 50Hz or 60Hz (Auto-sensing) |
| OUTPUT | |
| Voltage Regulation | +/-10% |
| Frequency | AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz |
| Waveform | Simulated Sinewave |
| Transfer Time | <6ms (Typical) |
| Outlet: Nema5-15R | 4pcs backup/AVR/Surge protected + 4pcs Surge only |
| Smart USB Charging | 2 ports, 5VDC 2.4A max. |
| BATTERY | |
| Type | Maintenance free sealed lead-acid battery |
| Voltage | 12VDC |
| Capacity & Number | 12V/9AH*1pc |
| Recharge Time | 5 hours to 90% after complete discharge |
| Safety Protection | Over Charge & Over Discharge Protection |
| Advanced Battery Management | Yes |
| DISPLAY | |
| LCD Status Indicators | Input voltage, Output voltage, Load level, Battery level, Fault, Battery fail, Overload, AC normal |
| AUDIBLE ALARM | |
| Battery Mode | Two short tones every 8 seconds |
| Low Battery | Four short tones every second |
| Overload | Beeping continuously |
| Fault | Beeping continuously |
| ENVIRONMENT | |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | 0-95% (Non-condensing) |
| Acousitc Noise | <40dB at 1M |
| PHYSICAL | |
| Dimension (D*W*H) | 315.5*100*141mm |
UPS Offline 800VA / UPS Battery Backup System / UPS LCD Display / 800VA Offline UPS
