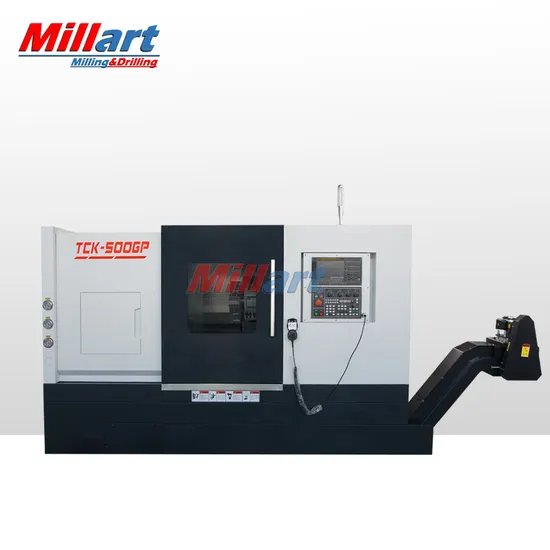

Factory Direct Supply Tck5075 High Precision Slant Bed CNC Lathe Machine, Horizontal Metal CNC Lathe Machine

Product Description

Product description:
Technical parameter :

Specifications	TCK5075
Max.swing over bed (mm)	Φ500
Max.turning diameter (mm)	Φ500
Max.swing over cross slide (mm)	Φ230
Max.turning length (mm)	750
Spindle nose	A2-6
Chuck size	8"
Spindle motor power (kw)	11-15
Max.spindle speed (rpm)	4200
Spindle bore (mm)	Φ66
Max turning Dia Bar (mm)	Φ52
X/Z axis leadscrew (mm)	32/40
X axis limit Travel (mm)	270
Z axis limit Travel (mm)	810
X/Z axis motor torque (N/m)	11/11
X/Z axis linear guideway (mm)	45/45
X/Z axis accuracy (mm)	0.008
X/Z axis repeat accuracy (mm)	0.005
Tailstock quill diameter (mm)	Φ80
Tailstock quill travel (mm)	80
Tailstock travel (mm)	480
Tailstock taper	MT5
Machine dimension (mm)	2100x1386x1435
Weight (kg)	2700

Standard accessories:
Fanuc 0i TF plus controller
Main motor and servo motor from Fanuc
Linear guideway from Taiwan Hiwin/PMI
Ball leadscrew from Taiwan Hiwin/PMI
Hollow type 3-jaw hydraulic chuck with soft jaws
Foot switch for chuck clamp and tailstock
Hydraulic tailstock
Hydraulic turret 12 tools
4 tool holder (1 external,1 internal,2 boring)
Telescopic covers
Full closed cover
Coolant system
Lubricating system
Work lamp
Tri-color alarm lamp
Safty door
USB interface
Chain type chip conveyor
Air gun
electric components
Live center
Tools and tool box
English Manual
Optional accessories:
Power turret BMT55 12 tools
Extra Radial live tool head
Extra Axial live tool head
C axis Function
Spindle with gear box
Y axis travel ±45mm
Tool measurement probe Renishaw
Tailstock moved by Z axis slider
Tailstock moved by hydraulic cylinder with linear guideway
Tailstock moved by servo motor with ball screw and linear guideway
Part catcher
electric components
Servo type bar feeder Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
