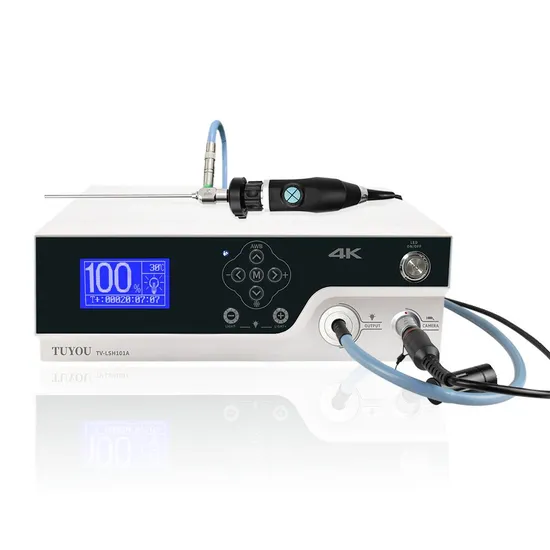

Video Endoscope Ent Endoscope Camera Manufacturer 4K Endoscope Camera System

Product Description

Product Parameters

Product Item No.

TV-LSH101A (4K Carema)

System Parameters
Input Interface	SDI 4K 60FPS
Output Interface	HDMI/SDI
Keypad Control	Control the mainboard menu and shortcut keys through RX/TX
Power	AC110V~240V
Shortcut Key Function	Freeze/White Balance/Video/Photo/Digital Zoom
Noise	<45db
Working Environment	-10ºC~60ºC
Product Size	L336*W330*H116mm
Net Weight	4.2KG

Camera Parameters
Image Sensor	1/1.8" SONY CMOS
Effective Pixels	3864(H) × 2192(V)Approx. 8.46M pixels
Resolution	SDI 4K 60fps
FREEZE	The picture freezes
AWB	One Button White Balance
Min-illumination	Color:DSS:0.017LUX BW DSS: 0.008 LUX
S/N Ratio (Signal to Noise Ratio)	More than 42Db(AGC off)
D-ZOOM	Image zoom 1-8X
Color	RED/GREEN/YELLOW/BLUE
Brightness	1-30 steps
Sharpness	1-40 steps
Lens Mode	ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Language	Chinese, English, Japanese, Korean and other languages
Working Environment	-30ºC~70ºC
Power(Max.) Supply	DC12V ±10% <3W
Working Current	250mA±10mA

Light Source Parameters
Light Type	LED
Effective Optical Power	100W
Illuminance	400W LUX
Color Temperature	5800-6500K
Brightness Adjustment	Support
Light Emitting Area (mm²)	3.8

Products Description Product Composition Introduction:
The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface). It is widely used in ENT, urology, gynecology, ophthalmology, orthopedics, neurosurgery, medical cosmetic surgery and other departments in clinical practice 1. Self-contained video recording system, self-contained light source, and self-contained display screen;
2. Multiple output signals, can be connected to an external display;
3. One-key freeze, one-key white balance, one-key key to zoom in and out;
4. with high-definition photo/video function;
5. Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup
