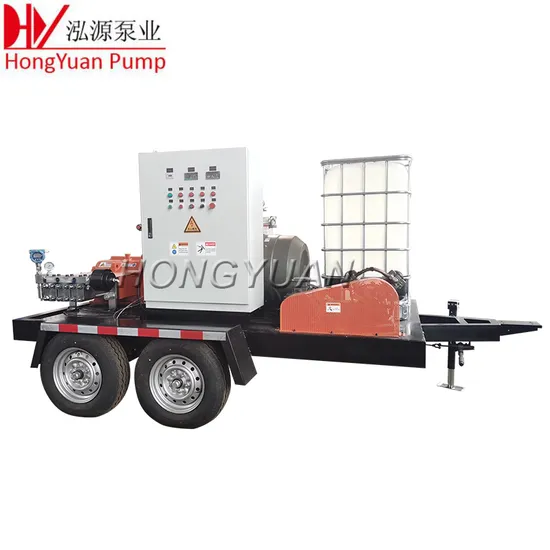

Heater Exchanger Cleaning 1000bar 93lpm High Pressure Hydro Water Jet Blasting Cleaning Machine

Product Description

Heater Exchanger Cleaning 1000bar 93lpm high pressure hydro water jet blasting cleaning machine
1. PRODUCT DESCRIPTION
Machine type: water blasting machine
Application: road marking remove
Machine model: WHY30030
Max Working pressure: 1000Bar
Flow rate: 93 Lpm
Medium:Fresh water,soda ash ,oil.ect
Certification: ISO9001:2008 , CE
Pump fluid end material:high quality stainless steel
Mounted type: Skid mounted or as require
Protecting cover: Container full cover as require
WHY30000 TECHNICAL PARAMETER

MODEL	DIAMETER	FLOW	ENGINE POWER (KW)				D	r.p.m
	(mm)	L/M	160 KW	200 KW	240 KW	288 KW
			WORKING PRESSURE (BAR)				1500	366
WHY30028	28	81	980	1200	1540	1800	1500	366
WHY30030	30	93	860	1100	1300	1600	1500	366
WHY30032	32	106	750	950	1180	1380	1500	366

D=Piston/Plunger. dia. [mm] n1=Motor/Engine r.p.m. n2=Crankshaft r.p.m
N2 Plunger speed:0.73m/s Rod force:105KN Stroke:120mm
1kW=1.34HP Op.pressure 1bar=14.5psi=0.1Mpa 1GPM=3.78L/M STANDARD FEATURES*High pressure pump (Max working pressure: 1000bar)
*Electric motor(Max 800KW)
*Control box( Incl pump protecting system)
*Flexible coupling
*Coupling protecting cover
*Double filter tank (Stainless steel as require)
*Safety valve
*Pressure regulating valve
*Pressure gauge EX
*High pressure hose
*Skid mounted base
*Water inlet Booster pump and piping system
We are leading manufacturer of high pressure cleaner/water jet cleaner / high pressure pump, support by over 25 years Ultra high pressure cleaner R&D team.
OPTIONAL FEATURES
*Stainless steel water tank
*Mobile Trolly
*High pressure hose
*Hose reel
*Nozzles
*Foot control valve
*Water jetting tools
*Full cover machine protecting container
*Engine Insulation kit
*Water jet high pressure cleaner Noise reduction kit
*Other special requirement of Customer
2. COMPANY INTRODUCTION
Wuxi Hongyuan Pump Manufacturing Co., Ltd. is a professional high pressure pump manufacturer and high pressure cleaning machine supplier . Our products strictly accord with JB/T8093-1999 standard and have passed through ISO9001 quality system.All products manufactured by the company with a pressure protection system, oil temperature control system, water flow pressure control system, control system.We focus on world leading technology, introduce the Germany technology, and constantly improve the quality system of our excellent products such as cleaning equipment and so on. This reduces the production cost and improves the work efficiency for users. According to customer requirements, they can customize products or research and develop production together.
3. APPLICATION
4. PACKING

5. SHIPPING
6. CUSTOMER VISIT
7. CUSTOMER ON-SITE INSPECTION
8.CERTIFICATION
9.FAQ
(1)Q : What capacity of we can supply?
A: we can as your needs to professional design.
(2)Q : How many days can delivery the goods ?
A:The machine and deliver time is specially designed machine according to your specific requirement.
(3)Q :What does your factory do regarding products quality ?
A: From the beginning to the end we have a special quality control personnel. Each machine is assembled and carefully tested before shipment.
(4)Q: How long is your delivery time?
A: It is according to the model and quantity.Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you want to customize the machines.
(5) Q: What is your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, ****** Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 40% T/T in advance, balance before shipment.
