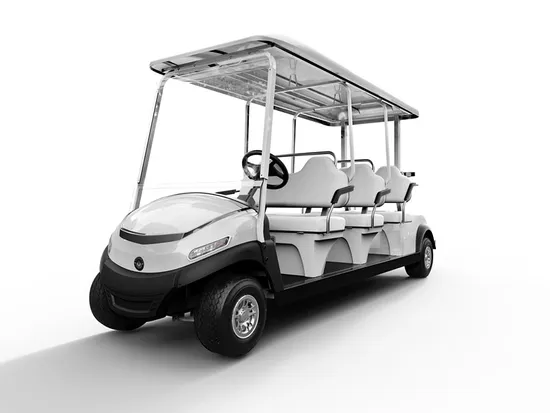

6 Seats Electric Golf Car with High Performance and Low Cost

Product Description

6 Seats Golf Car with High Performance and Low Cost
1. 2 years warranty
2. Luxury U.S imported electronics
3. Eco-friendly pp injected body
4. Lower maintenance cost
5. High grade Aluminium alloy chassis for antirust
Chasiss: Integral aluminium aloy chassis (one-time bending forming, not several parts welding together, with more than10 Years lifetime).
Body: High-Strength and Impact Resistant Composite Eco-friendly PP Injected, body color cusmized.
Parking:High performence Electronic Parking

Specification: Bodywork Frame Aluminium alloy chassis super antirust (Guarantee normal use for 10 years) Body High-strength and impact resistant composite material injected Body Color white,green,red Bodywork parameters Overall length: 3780mm Overall width 1350mm Overall height (with suntop) 1850mm Wheel base 2500mm Front wheel tread 870mm Rear wheel tread 985mm Width of seat 50cm Seating capacity 6 Dry Weight(with batteries) 535kgs Carrying Capacity 640kgs Turning radius (m) 2.8m Maximum speed 30km/h Power system Driving system Gear-driven, Stepless speed change, Electric rear drive Motor KDS(3.7 kw) DC Separately Excited(imported) Battery maintenance-free 8V × 6 Charger 48V 25A computer controlled charger Speed controller CURTIS Controller 1266A Gear ratio 12.49 Maximum climbing ability 30% Steering and Suspension Steering system Rack and pinion steering system, automatic rocker compensating function Front suspension Macpherson independent suspension Rear suspension Multileaf spring suspension + cylinder hydraulic shock absorber Brake system Rear drum brake +Electric parking system Automatic speed control system Controller+ Induction motors Autobrake System Controller+ Induction motors Braking distance ≤ 4m Wheel & Tyre 18X8.50-8,4layer superior tread tire

BUMPERS
The materials used here are impact resisting and automotive engineering grade PP. The hollow structure prevents possible impact that may deform the chassis frame by denting and re-bouncing to absorb the shock energy so to provide better protection

TOYOTA CONTROLLER
which delivers smooth power unlike any previous vehicle control system, and compared with the DC system, increases the driving mileage substantially by 20%.
MCPHERSON INDEPENDENT SUSPENSION
As in your car suspension, we use spiral damping springs to eliminate the nuisance of vibration and shocks. Our suspension creates extra cushion for your seat.
TYRE
Our line of tubeless golf and utility tires carry their load without wear and tear on the fairway and ride smoothly on paved paths.
