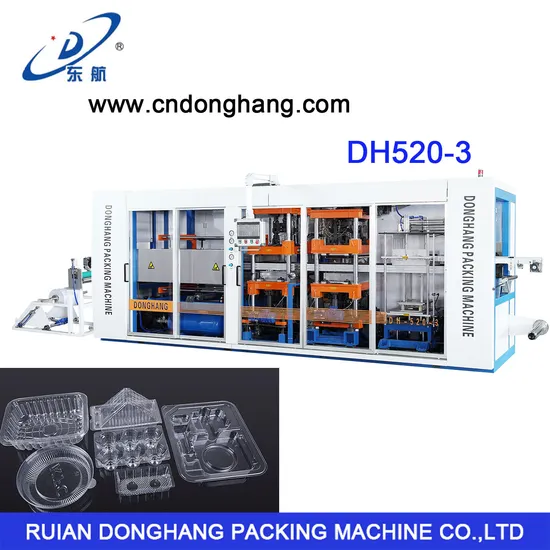

Good Quality Egg Tray Machine Donghang Brand

Product Description

Products Description:
It's a new type one that use full servo working of main forming machine and also brings to more improvement and innovation.With easy operation, calm running, conveninent maintenance and stable function.It can provide PVS,PS,PET etc.All kinds of covers.

Suitable Sheet	PVC.PS.PET,PP
Max.Forming Area	520mmX400mm
Max.Width	550mm
Max.Forming Depth	90mm
Power	AC380V/220V,23KW
Air pressure	0.6-0.8Mpa
Capacity	20-30 die/min
Weight	2200kg
Dimension	5200mmX1500mmX1800mm

Functions and Features
1) Mold adopts clamping plate, easy to adjust and install.
2) Main motor adopts servo governor: Cutting frequency is adjustable of 10~28 Time/min. Moderate the suitable cutting frequency on the basis of stoke length and difficulty of forming.
3) Servo feeding corporate with squeeze motion. Smooth running, process synchronized, the maximum line control is 240mm, it means the dimensions can designed differently in this range.
4) Forming heating plate automatically close and open. It can power on delay, limits the waste of materials in once time. The heating power and temperature can be lowed by adopted contact heating of the plate. Through which it saved energy and enhance the stability of plastic piece.
