40m Hydraulic Pump for Concrete Truck 40X-5rz
Basic Info.
Model NO.
40X-5RZ
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
240m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.4mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Green
Concrete Hopper Capacity
600L
Maximum Vertical Reach
40m
Minimum Unfolding Height
9.7m
Maximum Theorical Output
180/120m3/H
Conc. Cylinders (Diam. X Stroke)
260X2100mm
Transport Package
Nude
Specification
11990*2490*3900 mm
Trademark
RICHMCHN
Origin
China
HS Code
8705909100
Production Capacity
100unit/Year
Packaging & Delivery
Package Size
1250.00cm * 260.00cm * 420.00cm
Package Gross Weight
49000.000kg
Product Description

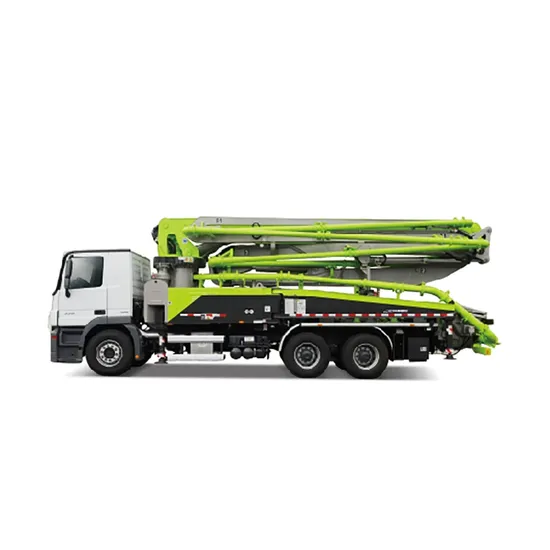

Product DescriptionZoomlion 40m pump height concrete pump truck ZLJ5280THBJF 40X-5RZ
Compact in design, 47m pump mounted on a 4-axle truck. • Efficient pump unit, ideal for long time use. • Agile placing boom with 6 arms with unfolding height 9.5m only,which gives a wide work range. • One side lateral support enables to work in narrow sites. • Controller is designed for heavy duty use, with a monitor, itmonitors the pump intelligently on working data agement,real-time diagnostics, alarm logging, and service interval notice.
• Rich in configurations and high quality components. • Boom with damping technology. • Stabilization control on boom. • Multilingual -machine interface system. • PWM+CAN dual communication mode remote control
| Model | Unit | 47X-5RZ | |
| Pump Unit | Maximum theorical output | m3/h | 180/120 |
| Maximum pressure on concrete | bar | 80/120 | |
| Conc. cylinders (diam. x stroke) | mm | 260x2100 | |
| Concrete hopper capacity | L | 600 | |
| Hydraulic circuit | | Open | |
| Boom Section | Maximum vertical reach | m | 47 |
| Maximum horizontal distance | m | 42.7 | |
| Minimum unfolding height | m | 9.7 | |
| Section numbers | | 5 | |
| Rotating angle | | ±270° | |
| End hose lenght | m | 3 | |
Detailed Photos
