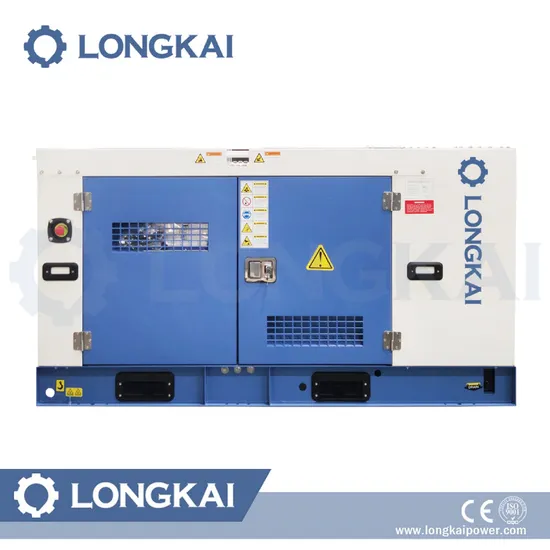

120kw 150kVA Prime AC Three Phase Silent Electric Power Diesel Generator with Cummins/Perkins/Deutz/Baudouin/Isuzu/Doosan/Ricardo ISO/CE Standard

120kw 150kVA Prime AC Three Phase Silent Electric Power Diesel Generator with Cummins/Perkins/Deutz/Baudouin/Isuzu/Doosan/Ricardo ISO/CE Standard

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LG120C
Type
Basic Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
1500rpm
Conditions of Use
Land Use
Usage
Common Units
Landuse Type of Unit
Low Noise Automation Type
Excitation Mode
AC Rotating Exciter
Prime Power
120kw 150kVA
Stanby Power
132kw 165kVA
Controller
Deepsea
Alternator
Stamford/Longkai/Leroy Somer/Meec Alte
Certificate
ISO9001, ISO14001
Transport Package
Plastic Film
Specification
3070*1080*1550mm
Trademark
LONGKAI
Origin
China
HS Code
85021200
Production Capacity
5000pieces Per Year

Product Description

FUAN LONGKAI POWER Co., Ltd was established in 2000, and now become one of the professional players of generating set manufacturer in China. The factory of Longkai, occupying a total space of 10, 000 square meter, is located in Fuan City, Fujian Province, China. Now we can supply generating sets ranging 10kVA_3, 300kVA open type, soundproof type, trailer type, containerized type diesel generator sets, ATS Panel, Synchronizing Penel, Also we suply Alternators, Motors, Pumps. At present, there are 4 Assembly Lines in Longkai to enable us to produce 1000 sets for Industrial Gensets, Alternators, Motors, Pumps per month. In partnership with our dealer over 40 countries, we keep moving to expand our business all over the world.
The Basic Configuration for Diesel Generator set powered by CUMMINS
1. Brand new CUMMINS water cooled diesel engine
2. Brand new STAMFORD/ LONGKAI AC atlernator, Ratings: 230/400v(To be confirmed, can be make it as client's request), 3Ph, 50Hz, 1500Rpm, 0.8PF, IP23, H insulation class
3. Radiator with engine driven fan mounted on skid
4. Set mounted UK brand Deepsea DSE6120 auto start control panel
5. Set mounted with CHNT brand Circuit Breaker
6. Anti-vibration mountings
7. 12/24V DC Electric start system with VARTA brand lead-acid type starting batteries
8. Industrial silencers with flexible connects and elbow
9. Genset will be with a base fuel tank for 8 hours running, with fuel gauge integrated in the base frame of generating set
10. Test report of generator, Set of drawings and O&M manuals
11. Standard tools kit
PERFORMANCE DATA
PERFORMANCE DATA CUMMINS 400V, 50HZ, 1500RPM
GENSET MODEL ESP PRP Engine type Dimension
KVA KW KVA KW Open type (mm) Silent type(mm)
LG17C 23 19 21 17 4B3.9-G11 OP1850*800*1160 AT2388*1000*1450
LG22C 30 24 28 22 4B3.9-G1 OP1850*800*1160 AT2388*1000*1450
LG22C 30 24 28 22 4B3.9-G2 OP1850*800*1160 AT2388*1000*1450
LG25C 34 28 31 25 4B3.9-G12 OP1850*800*1160 AT2388*1000*1450
LG32C 44 35 40 32 4BT3.9-G1 OP1850*800*1160 AT2388*1000*1450
LG32C 44 35 40 32 4BT3.9-G2 OP1850*800*1160 AT2388*1000*1450
LG50C 69 55 63 50 4BTA3.9-G2 OP1850*800*1290 AT2538*1000*1450
LG50C 72 57 65 52 4BTA3.9-G11 OP1900*800*1300 AT2538*1000*1450
LG60C 80 64 73 58 4BTA3.9-G11 OP1900*800*1300 AT2538*1000*1450
LG68C 94 75 85 68 4BTA3.9-G13 OP1900*800*1300 AT2688*1080*1450
LG75C 103 83 94 75 4BTA3.9-G13 OP1900*800*1300 AT2688*1080*1450
LG80C 103 83 94 75 6BT5.9-G1 OP2200*880*1360 AT2938*1080*1690
LG86C 118 95 108 86 6BT5.9-G2 OP2200*880*1360 AT2938*1080*1690
LG96C 132 106 120 96 6BT5.9-G2 OP2200*880*1360 AT2938*1080*1690
LG90C 127 101 115 92 6BTA5.9-G2 OP2200*880*1360 AT2938*1080*1690
LG100C 138 110 125 100 6BTAA5.9-G2 OP2400*950*1510 AT3288*1130*1850
LG110C 149 119 135 108 6BTAA5.9-G2 OP2400*950*1510 AT3288*1130*1850
LG120C 165 132 150 120 6BTAA5.9-G12 OP2400*950*1510 AT3288*1130*1850
LG145C 199 160 181 145 6CTA8.3-G1 OP2400*950*1510 AT3288*1130*1850
LG145C 199 160 181 145 6CTA8.3-G2 OP2400*950*1510 AT3288*1130*1850
LG160C 220 176 200 160 6CTAA8.3-G2 OP2650*1000*1800 AT3588*1180*2150
LG200C 275 220 250 200 6LTAA8.9-G2 OP2650*1000*1800 AT3588*1180*2150
LG200C 275 220 250 200 6LTAA8.9-G3 OP2650*1000*1800 AT3588*1180*2150
LG220C 297 238 270 216 6LTAA9.5-G3 OP2650*1000*1800 AT3588*1180*2150
LG260C 352 282 320 256 6LTAA9.5-G1 OP2650*1000*1800 AT3588*1180*2150
LG310C 426 341 388 310 6ZTAA13-G3 OP3500*1300*2050 AT4588*1600*2500
LG350C 481 385 438 350 6ZTAA13-G2 OP3500*1300*2050 AT4588*1600*2500
LG360C 481 385 438 350 6ZTAA13-G4 OP3500*1300*2050 AT4588*1600*2500
LG360C 495 396 450 360 QSZ13-G2 OP3500*1300*2050 AT4588*1600*2500
LG380C 523 418 475 380 QSZ13-G3 OP3500*1300*2050 AT4588*1600*2500
LG360C 495 396 450 360 QSZ13-G5 OP3500*1300*2050 AT4588*1600*2500
LG400C 550 440 500 400 QSZ13-G10 OP3500*1300*2050 AT4588*1600*2500
LG440C 605 484 550 440 KTAA19-G5 OP3400*1370*2150 AT4588*1600*2500
LG460C 633 506 575 460 KTAA19-G6 OP3500*1525*2220 AT4888*1800*2500
LG480C 660 528 600 480 KTA19-G8 OP3500*1525*2220 AT4888*1800*2500
LG500C 688 550 625 500 KT38-G OP3500*1525*2220 AT4888*1800*2500
LG570C 784 627 713 570 KTA38-G1 OP4400*1760*2250 20FT
LG600C 825 660 750 600 KT38-GA OP4400*1760*2250 20FT
LG600C 825 660 750 600 KTA38-G2 OP4400*1760*2250 20FT
LG720C 1001 801 910 728 KTA38-G2A OP4400*1760*2250 20FT
LG800C 1100 880 1000 800 KTA38-G5 OP4400*1760*2250 20FT
LG900C 1238 990 1125 900 KTA38-G9 OP4400*2000*2250 20FT
LG1000C 1375 1100 1250 1000 KTA50-G3 OP4400*2000*2250 20FT
LG1100C 1513 1210 1375 1100 KTA50-G8 OP5000*2000*2500 40HQ
LG1180C 1623 1298 1475 1180 KTA50-GS8 OP5800*2200*2500 40HQ
LG1350C 1856 1485 1688 1350 KTA50-G15 OP5800*2200*2500 40HQ
