Professional High Temperature Microwave Tube Furnace for Laboratory Use

Product Description

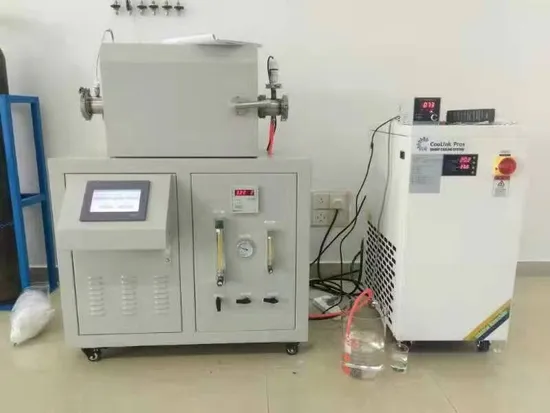

High Temperature Microwave Tube Furnace
TM-ZG3016S
Detailed Product Description
1.Temperature up to 1600 ºC
2.Dual temperature measurement using infrared thermometer and thermocouple
3. Microwave heating.
4. No pollution to material
Main technical parameters:

MODEL	TM-ZG3016S
POWER SUPPLY	220±10V 50Hz
RATED POWER	5KW
Microwave output power	0.01~2.80kW0.01~2.80KW continuously variable
Microwave frequency	2.45GHz
WORK TEMPERATURE	≤1600ºC;
Heating space	Ф50×250mm(diameter×length)
Temp measruing way	infrared thermometer+thermocouple
Measure range	Infrared thermometer:300~1800 ºC Thermocouple:RT~1600 ºC

Temperature accuracy	Read ±1ºC
Control way	Touch screen +PLC+(40 sections of temperature control)
Insulation system	Customized HTF1800 module with 1800 ºC high-purity cured polycrystalline fiber, density of 0.6g/cm3 (± 0.05 g/cm3), detachable microwave-assisted heating module, and customized sagger made of absorbing material
Control procedure	The control system adopts international brand PLC combined with high-definition touch screen operation, with automatic control, manual, and constant temperature modes. Multiple process schemes can be set, and large capacity data storage is available, Export experimental data through USB interface; Real time display of curves, online alarm; Self developed control software, one click oven setting, Scalable remote control, alarm and customized functions according to the demand.
Static ultimate vacuum degree	≤100Pa;pumping speed>=2L/S
Atmosphere requirements	Two way intake, precise control of gas flow rate; Rapid pre vacuuming, capable of filling with oxidizing gases, inert gases, weakly reducing gases, etc
Microwave Leakage	< 1mW/cm2 (Safety standard < 5mW/cm2)
Magnetron alarm	Over temp alarm,over current alarm
Furnace door protection	Protection swich
Funace body	530×430×380mm (L×W×H)
Control cabinet	900×500×700mm (L×W×H)
Package size	1000mmx1200mmx1200mm

Application field:
- Specially apply for synthesis of high-purity metal nitride
- Catalytic decomposition and reduction on SO2 and NOX
It can also be used in following fields:
1. Compounding and sintering of inorganic powder
1). Carbide: SiC, CrC, VC, etc
2). Nitride: Si3N4, MnxNy, AlN, VN, CrN, etc
3). Electronic ceramic powder: barium titanate, barium-strontium titanate, strontium titanate, barium zirconate titanate, etc.
4). Fluorescent powder (LED powder, three primary colors, long after glowing phosphor powder, etc)
5). Lithium-ion battery material: lithium cobaltoxide, lithium manganate, LiFePO4, etc, anode and cathode carbon materials.
6). Multi colors ceramic pigment, glaze material, ceramic raw material, etc.
2. Inorganic material/products sintering
1). Electronic ceramic: BaTiO3, SrTiO3, ZnO piezoelectric ceramics, PTC thermo-sensitive components, etc.
2). bio medical ceramic: man-made bones, teeth, MgO, Al2O3, ZrO2, SiC, Y2O3, Si3N4, SiO2, etc high performance structure ceramic.
3). Daily-used ceramics, arts and crafts ceramic.
3. Incinerating
4. Melting and thermal treatment
5. Melt oxidized ore carbon thermal reduction
6. Specially suitable
Configuration list

No.	item	specification	qty	remark
1	Power line		1	16A/3 holes plug,3m wire
2	Microwave source	Industrial grade 1.5kw MW system 2(including magnetronand switch)	2	2X1.5KW installed to furnace
3	Tubural insulation system		1	1800ºC tubural insulation structure
4	Quartz tube	Φ60mm×680mm	2
5	Corundumtube	Φ60mm×680mm	2
6	MW specific heating material		1	1800ºC
7	Thermocouple	RT-1600ºC	1	B type
8	Infrared thermometer	300-1800ºC	1
9	Vane vacuum pump	Pumping speed>=2L /S	1	Equiped with two sets of high precision float flow meters
10	PLC		1	Mitsubishi
11	Touch screen		1
12	Furnace body and tablet	304Stainless steel and carbon steel spray coating	1
13	Sealing rings		4
14	MW Leak detector		1
15	Other accessories		1	Including HP gloves materials hook etc
16	Chiller	1P	1
