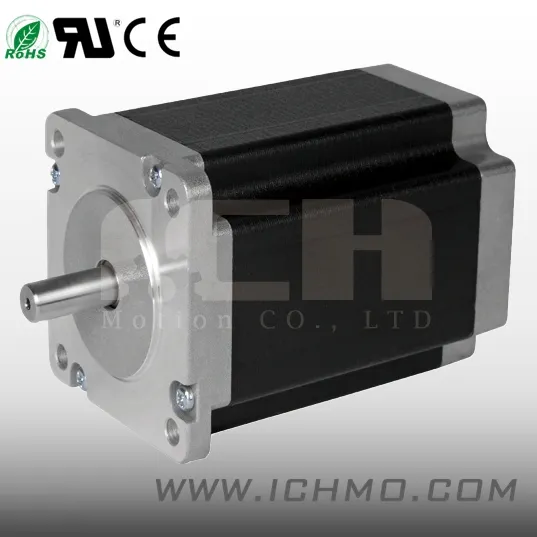

NEMA 24 60mm 3 Phase Hybrid Stepper Stepping Motor with Encoder
| US$5.00-8.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
H601
Excitation Mode
HB-Hybrid
Function
Control, Driving
Type
Magnetic-Electric
Size
60mm
Step Angle
1.8
Length
41-90mm
Rated Current
2.0-4.2A
Resistance
0.4-1.8ohm
Inductance
1.2-6.5mh
Holding Torque
75-260n.Cm
Detent Torque
3.0-12n.Cm
Lead Wire
4
Transport Package
Carton or Pallet
Specification
ROHS, CE
Trademark
I. CH
Origin
China
HS Code
85011099
Production Capacity
5000K pcs/year
Product Description
I. CH MOTOR - Hybrid Stepper Motor H601(60MM)Specifications:
-Step Angle: 1.8°
-Length: 41-90mm
-Rated Current: 2.0-4.2A
-Phase Resistance: 0.4-1.8ohm
-Phase Inductance: 1.2-6.5mH
-Holding Torque: 75-260N. Cm
-Detent Torque: 3.0-12N. Cm
-Lead Wire No.: 4
-Weight: 500-1400g
Drawing:
Electrical Specification:
| Series Model | Step Angle ( o ) | L (mm) | Rated Current (A) | Phase Resistance ( Ω ) | Phase Inductance (mH) | Holding Torque (N.cm) | Detent Torque (N.cm) | Lead Wire (NO.) | Motor Weight ( g) |
| H601-07520 | 1.8 | 41 | 2.0 | 1.2 | 2.5 | 75 | 3.0 | 4 | 500 |
| H601-08525 | 1.8 | 45 | 2.5 | 1.0 | 2.2 | 85 | 3.5 | 4 | 550 |
| H601-14025 | 1.8 | 51 | 2.5 | 1.2 | 3.2 | 140 | 4.0 | 4 | 580 |
| H601-16025 | 1.8 | 56 | 2.5 | 1.3 | 4.2 | 160 | 4.0 | 4 | 580 |
| H601-16030 | 1.8 | 56 | 3.0 | 0.8 | 2.4 | 160 | 4.0 | 4 | 580 |
| H601-16042 | 1.8 | 56 | 4.2 | 0.4 | 1.2 | 160 | 4.0 | 4 | 580 |
| H601-18025 | 1.8 | 64 | 2.5 | 1.5 | 4.5 | 180 | 5.0 | 4 | 850 |
| H601-18030 | 1.8 | 64 | 3.0 | 0.8 | 2.3 | 180 | 5.0 | 4 | 850 |
| H601-18042 | 1.8 | 64 | 4.2 | 0.55 | 1.2 | 180 | 5.0 | 4 | 850 |
| H601-22025 | 1.8 | 76 | 2.5 | 1.8 | 6.5 | 220 | 7.0 | 4 | 1150 |
| H601-22030 | 1.8 | 76 | 3.0 | 1.0 | 3.5 | 220 | 7.0 | 4 | 1150 |
| H601-22042 | 1.8 | 76 | 4.2 | 0.6 | 1.8 | 220 | 7.2 | 4 | 1150 |
| H601-26030 | 1.8 | 90 | 3.0 | 1.4 | 5.5 | 260 | 12 | 4 | 1400 |
| H601-26042 | 1.8 | 90 | 4.2 | 0.8 | 3.0 | 260 | 12 | 4 | 1400 |
Work Flow:
About Us:
I.CH Motion Co., Ltd., established in 2006, and our main products are hybrid stepper motor, stepping motor driver, step engine, stepping engine, integrated step servo motors. 2 phase stepper motor, stepping motor, step motor.
Professional manufacturer for stepper motor, have NEMA8, NEMA11, NEMA14, NEMA17, NEMA23, NEMA34, NEMA42.1.8 degree, 0.9 degrees. Single shaft and double shaft.
I.CH owns a test center, equipped with a variety of detection equipment and measuring instruments. The test center equipped Torque-frequency characteristic test equipment and Encoder Precision test instrument also.
Applications:
Our products are widely used and applied in the following industries: lighting system, projector, CNC, semiconductor, textile, laser, woodworking, printing, advertising, clothing, marble and ceramic, robotics and military.
