frp tank for water soft

Product Description

Product Description

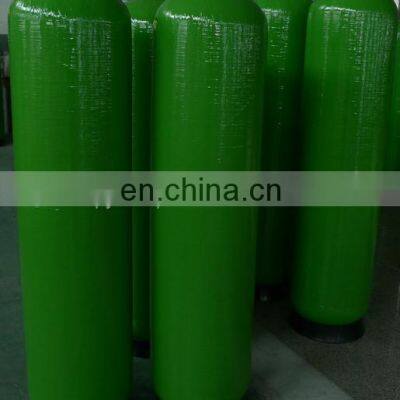

Cop –pac frp tanks are made of high quality composite materials HDPE liner blow molding technique provides a continuous seamless inner liner shell. Epoxy resin system and FRP filament winding outer shell reinforces the liner and providing extra strength for high pressure application. The tank inlet using glass filled Polypropylene increases its’ capabilities and strength against abrasion, temperature and pressure Available in 6” to 13” diameter ,2.5” NPSM single top opening for residential applications Commercial tanks range from 14” to 24” diameter available in both 2.5”-NPSM and 4” 8UN top and top/bottom openings Available in 30” to 63” diameter,both 4” thread and 6” flange single top opening and top/bottom opening Standard base for single top opening,Tripod base for top/bottom opening Different color options are also available. Hard carton packing on 30” to 63” Cycle test of 100,000 cycles Max operating pressure :150psi (10.50bars) Operating: Burst test to 4x maximum operating pressure Private label is available
