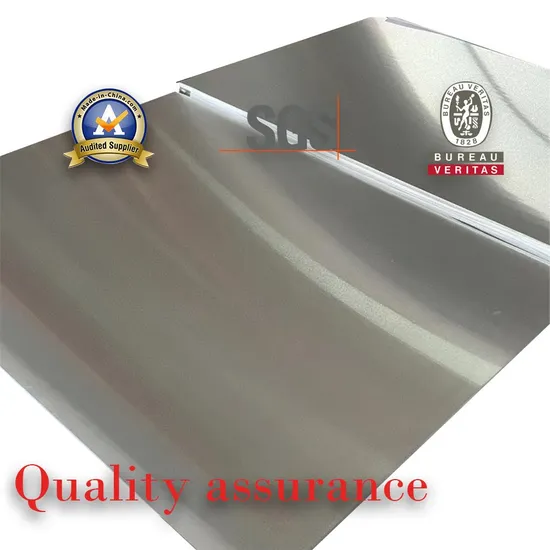

Titanium Plate 1mm ASTM B265 Grade 5 Titanium Metal Plate Prices

Product Description

Product Description
1. Titanium plate is the surface of the oxide film equivalent to a good wear resistant hair separation agent, the use of titanium plate saves the separation agent, so that the plate stripping is easy, exempt from the pre-treatment process of the plate, titanium plate is half lighter than the copper plate.2. The service life of titanium plate is more than 3 times that of copper plate, which can reach 10 to 20 years according to operating conditions3. Electrolytic copper prepared with titanium seed plate has dense crystalline structure, smooth surface and excellent quality.4. Because the titanium plate does not need to apply separation agent, it can avoid pollution of copper electrolyte.5. Increase production capacity to reduce the production cost of electrolytic copper, so as to have better economic benefits.
Product Parameters

Item Name	Titanium plate
Type	GR1, GR2, GR3, GR4, GR5, 6AL4V Eli, GR7, GR9, GR12, GR23,TB3, TB6, TC4, TC6, TC11, TC17, TC18
Standard	ASTM B265, AMS4911, AMS4911H, GB/T3621-2007
Specification	Hot Rolling: Length 1000-4000mm,Width 400-3000mm,Thickness 4.1-60mm Cold Rolling :Length 1000-3000mm,Width 400-1500mm,Thickness 0.3-3.0mm
Certificate	ISO 9001:2008
Supply Ability	10 Tons per Month
Delivery	Within 5~30 days
Grade	Grade 1: Pure Titanium, relatively low strength and high ductility. Grade 2: The pure titanium most used. The best combination of strength, weldability. Grade 3: High strength Titanium, used for Matrix-plates in shell and tube heat exchangers. Grade 5: The most manufactured titanium alloy. Exceedingly high strength. high heat resistance. Grade 7: Superior corrosion resistance in reducing and oxidizing environments. Grade 9: Very high strength and corrosion resistance. Grade 12: Better heat resistance than pure Titanium. Applications as for Grade 7 and Grade 11. Grade 23: Titanium-6Aluminum- 4Vanadium ELI. Alloy for surgical implant application.
Application	Metallurgy, electronics, medical, chemical, petroleum, aerospace, and others.

1.Chemical requirements
Grade	N(≤)	C(≤)	H(≤)	Fe(≤)	O(≤)	Al(≤)	V(≤)	Pd(≤)	Mo(≤)	Ni(≤)	Ti
GR1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	bal
GR2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	bal
GR3	0.05	0.08	0.015	0.3	0.35	/	/	/	/	/	bal
GR4	0.05	0.08	0.015	0.2	0.4	/	/	/	/	/	bal
GR5	0.05	0.08	0.015	0.4	0.2	5.5~6.75	3.5~4.5	/	/	/	bal
GR7	0.03	0.08	0.015	0.3	0.25	/	/	0.12~0.25	/	/	bal
GR9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
GR12	0.03	0.08	0.015	0.3	0.25	/	/	/	0.2~0.4	0.6~0.9	bal
GR23	0.05	0.08	0.012	0.25	0.13	5.5~6.5	3.5~4.5				bal

2.Tensile requirements
Grade	Tensil strength(≥)		Yeild strength(≥))		Elongation(≥)%)
	ksi	Mpa	ksi	Mpa
GR1	35	240	20	138	24
GR2	50	345	40	275	20
GR3	65	450	55	380	18
GR4	80	550	70	483	15
GR5	130	895	120	828	10
GR7	50	345	40	275	20
GR9	90	620	70	483	15
GR12	70	483	20	345	18
GR23	120	828	110	760	10

Processing Process
Application
Application field of titanium plate
Aerospace: Titanium plates are widely used in the aerospace field, such as the manufacture of aircraft structural parts, engine parts, spacecraft shells and so on.
Chemical industry: Because titanium plate has excellent corrosion resistance, it is widely used in chemical equipment, pipelines, storage tanks and other fields.
Medical field: Titanium plate is widely used in medical devices, artificial joints, dental implants, etc., because of its good biocompatibility, it will not reject the human body.
Energy field: Titanium plates are used in the manufacture of nuclear reactor vessels in nuclear power plants, pipelines and equipment in offshore oil platforms.
Automotive industry: Titanium plates are used in automotive manufacturing to reduce body mass and improve fuel efficiency and power performance.
Sporting goods: such as golf clubs, bicycle frames, etc., using the lightweight and high-strength characteristics of titanium plates to improve product performance.
Packaging & Shipping
Packing: film packing; Woven bag winding; Carton packaging; Wooden case packing
Mode of transport:
1. Shipping
2. Iron transportation
3. Air Freight
We will match the most suitable mode of transportation for customers according to their needs and the size of the goods
Company Profile
Shandong Quansheng Material Technology Group Co., Ltd. is an enterprise engaged in the research, smelting and processing of titanium and its alloys, zirconium and its alloys, tantalum, niobium, Hastelloy, Inconel alloy, Monel alloy, superalloy, pure nickel and its alloys and other superalloys and corrosion-resistant alloys. The products cover plates, strips, profiles, bars, wires, pipes, pipe fittings, forged flanges, etc.
The factory covers an area of 120,000 square meters, and now has a series of production equipment such as vacuum induction furnace introduced from the United States, vacuum self-consumable electric arc furnace produced in Germany, 2800mm four-high reversible rolling mill, vacuum annealing furnace, etc., and has more than 100 sets of various testing instruments, the main equipment are: American nondestructive testing system, spectrum analyzer, carbon and sulfur tester, universal testing machine, ultrasonic testing system, fatigue testing machine, etc.
It can customize the production of any size plate within 2.6m*16m, and the maximum length of a single pipe can reach 15m.
We have advanced technology and equipment, mature processing concepts, professional scientific research personnel, and experienced foreign trade personnel. Our aim is quality first, reputation first. Welcome friends from all over the world to visit.
Our Advantages
WHY CHOOSE US1.High quality products, durable, strict inspection.
2.We offer quality, strong and rugged products.
3.Advanced technology, to provide customers with customized products.
4.High quality + ex-factory price + rapid response + reliable service, we strive to provide.
5.Professional workers and efficient foreign trade team, to provide services for you.
FAQ
Q: How about the MOQ? If my first order qty is small, will you accept? A: We would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have confidence to move on second order with your esteemed company. Q: What is your payment terms ? A: Commonly two payment term for new customers: 1) 30% T/T as deposit , 70% balance against B/L copy; 2) 100% Irrevocable L/C at sight;If you need any other terms, pls feel free to contact us too, we will try our best. Q: How long is your delivery time? A: Our daily inventory is more than 8000 tons, so for common product size, just need 5 days from stocks; if the special size from new production, delivery 7 days. Q: How about the samples ? is it free or extra fees? A: Yes, we would like to supply the samples before order; if the samples from stock, it will be free; if the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice. Q: How to control and guarantee your shipment quality? A: 1) All our factories are ISO9001, CE certified facility; 2) World famous origin mills as TISCO, Baosteel. 3) Ex factory inspection by our own laboratory. 4) SGS/BV Third party inspection before delivery
