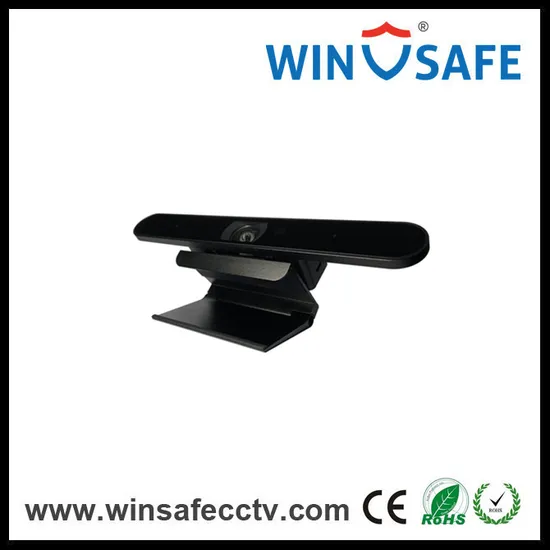

4K Auto Frame Auto Tracking Eptz Camera
| US$120.00-180.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
MZC-F22U
Type
Video Camera
Sensor
CMOS
HDMI Format
4K
Horizontal Resolution
3840 X 2160
Kind
Auto Tracking Camera
Certification
CE
Feature
Waterproof / Weatherproof, Vandal-proof
Effective Distance
0-9m
Sensor Size
1/2.8
Remote Control
With Remote Control
Transport Package
Neutral Packing
Specification
CE RoHS
Trademark
Winsafe
Origin
Shenzhen China
HS Code
8525801390
Production Capacity
50000PCS/Month
Product Description
Mini 4K Auto frame and Auto Tracking EPTZ Video Conference Web CameraMZC Series auo tracking EPTZ camera helps to achieve intelligent meeting experience, implemented with intelligent video analysis and EPTZ technology, it canautomatically frame meeting participants in the room, and it fres of camera operation during a meeting and enables meeting attendees to focus more on discussion.
Features
1/2.8" CMOS, 8.57MP, up to 3840x2160@30fps
2.2mm focal lens, up to horizontal 110°FOV, no distortion
USB power supply, USB type C interface
Compact design, thinkness of the camera is less than 40mm, side entry USB cable, suitable for ultra-thin TV installtion
Integrated with video analysis algorithm, able to automatically detect and frame meeting participants using EPTZ technology
| Model No. | MZC-F22U | |||
| HD Camera | ||||
| Image Sensor | 1/2.5" CMOS, 8.57MP | |||
| Signal Format(SDI) | Max: 4K@30fps | |||
| Video Format | YUY2: 1920x1080, 320x240, 640x480,800x600, 1024x768, 1280x720 MJPG: 1920x1080, 320x240, 640x480, 800x600, 1024x720, 3840x2160 | |||
| Focal Lens | 2.2mm | |||
| Iris | F2.4 | |||
| Field of View | Horizontal 110° | |||
| Min.illumination | 1Lux @ (F1.8, AGC ON) | |||
| Shutter Speed | 1/60 - 1/10,000s | |||
| White Balance | Auto, One Push | |||
| S/N | Above 50dB | |||
| DNR | 2D/3D | |||
| BLC | Support | |||
| OSD | English | |||
| USB | ||||
| OS | Windows XP/7/8/10,Linux, Mac OS, Android OS | |||
| Video Interface | USB2.0 | |||
| Reslution | MJPG: 1920X1080, 1280X720, 640X480, 320X240 H.264: 3840X2160, 1920X1080, 1280X720, 640X480, 320X240 | |||
| UVC Protocol | USB2.0/UVC 1.0 - UVC1.4 | |||
| UVC PTZ Control | Support EPTZ | |||
| Output Interface | ||||
| USB Interface | USB TYPE-C | |||
| General | ||||
| Power Supply | 5V(USB) | |||
| Power Consumption | Below 4.5W | |||
| Working Temperature | 0°C - +40°C | |||
| Store Temperature | -20° - +60° | |||
| Dimension(L x W x H) | 208mm x 34mm x 56mm | |||
| Weight | 0.4kg | |||
