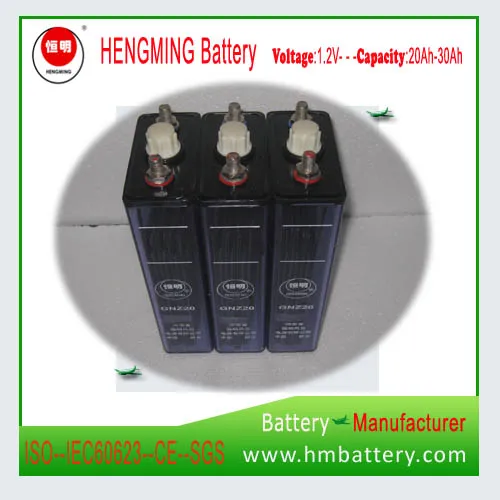

Nickel Cadmium Alkaline Battery Gnz20 for UPS

Product Description

Nickel Cadmium Batteries
HengMing ---Specialized in NiCd Batteries
The HengMing Cell range meet, exceed the requirement of IEC60623 standard. There are low, medium, high, ultra high rate discharge types.
As a worldwide power supplier, HengMing is delicated to producing safe, reliable NiCd battery power products with experienced research & development centerstate-of-the-art manufacturing facilities.
Hengming Ni-Cd battery are widely used as emergency back-up power supply for railwayrolling stocks (crossing guards, lighting, signaling, communicationpantograph lifting), DC cabinet, distribution cabinet, UPS systems, AGV, photovoltaic system, petrochemical, oil&gas, utilityelectricity industries (Emergency lighting&control equipment, offshore platform, cathodic protection for pipeline),engine starting,etc.
KPX type (ultra high rate cells)
KPX series super rate nickel cadmium battery which made of sintered plate is characterized by compact construction, low internal resistance, high reliability, high capacity, long service lifeexcellent low temperature performance
KPH TYPE (High Discharge Rate Cell)
KPH Series high rate Nickel Cadmium battery is particularly suitable for high discharge rate applications less than one hours, such as UPS, switchgear trippingclosing, etc.
KPM TYPE (Medium Discharge Rate Cell)
KPM Series medium rate nickel cadmium battery is made of pocket plates. The battery is suitable for medium discharge rate applications (between 30 minutes to 5 hours) such as railroad DC power sources, UPS, gas turbine control, etc.
KPL TYPE (Low Discharge Rate Cell)
KPL Series low rate nickel cadmium battery is made of pocket plates. The battery is designed for general purposestandby applications such as lighting on trains, operation of circuit breaker, etc.
Cell construction
Cell Capacity and Dimensions

KPM=GNZ(Medium Rate Type) Pocket----Pocket
Cell Type	Nominal Voltage (V)	Rated Capacity (Ah)	Dimension(mm)			Thread of pole	Weight (filled) (Kg)	Electrolyte Volume (L)	Container Material
			L	W	H
GNZ10	1.2V	10	82	43	258	M10*1.5	1.20	0.40	ABS / PP
GNZ20	1.2V	20	135	54	265	M10*1.5	1.90	0.60	ABS / PP
			114	52	266	M10*1.5	2.10	0.70	ABS
GNZ30	1.2V	30	135	54	265	M10*1.5	2.40	0.60	ABS / PP
GNZ40	1.2V	40	141	71	295	M10*1.5	3.60	1.00	PP
			138	61	266	M10*1.5	3.62	0.84	ABS / PP
GNZ50	1.2V	50	139	79	295	M10/M16	4.65	1.00	ABS
			141	71	295	M10*1.5	4.20	1.00	PP
GNZ60	1.2V	60	139	79	295	M16	5.30	1.20	ABS
			141	71	295	M10*1.5	4.40	1.00	PP
GNZ70	1.2V	70	139	79	295	M16	5.40	1.20	ABS
			139	79	362	M16	6.20	1.42	ABS / PP
			141	71	295	M10*1.5	4.60	1.00	PP
GNZ80	1.2V	80	139	79	362	M16	6.50	1.40	ABS / PP
			143	100	280	M10*1.5	5.80	1.5	ABS
GNZ90	1.2V	90	164	104	345	M20×1.5	8.20	1.62	ABS / PP
			139	79	362	M16	6.50	1.25	ABS / PP
GNZ100	1.2V	100	164	104	345	M20×1.5	9.30	1.8	ABS / PP
GNZ120	1.2V	120	164	104	345	M20×1.5	9.50	1.80	ABS / PP
			139	89	362	M16	7.50	1.50	PP
GNZ130	1.2V	130	165	105	345	M20×1.5	9.50	1.75	ABS / PP
			167	162	345	M20×1.5	11.40	2.70	ABS / PP
GNZ140	1.2V	140	165	105	345	M20×1.5	9.60	1.75	ABS / PP
GNZ150	1.2V	150	167	162	345	M20×1.5	12.50	2.70	ABS / PP
			165	105	345	M20×1.5	9.60	1.60	ABS / PP
GNZ160	1.2V	160	167	162	345	M20×1.5	12.80	3.00	ABS / PP
GNZ180	1.2V	180	167	162	345	M20×1.5	13.60	3.40	ABS / PP
GNZ200	1.2V	200	167	162	345	M20×1.5	14.00	2.90	ABS / PP
GNZ250	1.2V	250	282	170	348	M20×1.5	20.60	4.60	ABS
			277	145	450	M20×1.5	21.50	4.60	ABS
			176	161	540	M16	20.60	4.60	ABS
GNZ300	1.2V	300	282	170	348	M20×1.5	23	5	ABS
			176	161	540	M20×1.5	22.60	5.00	ABS
			232	172	410	M20×1.5	23.00	4.80	ABS
GNZ400	1.2V	400	282	170	348	M20×1.5	24.00	6.00	ABS
			285	172	490	M20×1.5	31.80	7.00	ABS
			277	140	490	M20×1.5	26.50	5.00	PP
GNZ500	1.2V	500	285	172	490	M20×1.5	36.50	8.50	ABS
GNZ600	1.2V	600	285	172	490	M20×1.5	39.00	10.00	ABS
GNZ700	1.2V	700	395	185	560	M20×1.5	54.70	11.50	ABS
GNZ800	1.2V	800	395	185	560	M20×1.5	66.00	15.00	ABS
GNZ900	1.2V	900	395	185	560	M20×1.5	66.00	15.00	ABS
GNZ1100	1.2V	1100	395	185	560	M20×1.5	68.30	12.50	ABS

Application areas of Hengming batteriesGNC=KPX series:AGV; starting power; operating power of electrical system; etc.GNG=KPH series:Staring power; UPS; etc.GNZ=KPM series:Starting power; operating power of electric system; UPS etc.GN=KPL series:Emergency lighting; communication; vessels; backup power of locomotive; energy storage of wind and solar power generation; etc.
Cycle life
one cycle means a cell is fully charged and discharged. The cell's cycle life should not be less than 900 cycle. According to the applicable IEC standard,it shoud be 500 cycles at least. in case of float charge application,its cycl life may be longer.
Packing and Shipping
The battery will be packed by polywood case. the battery will be shipped with dry battery and accessories.
