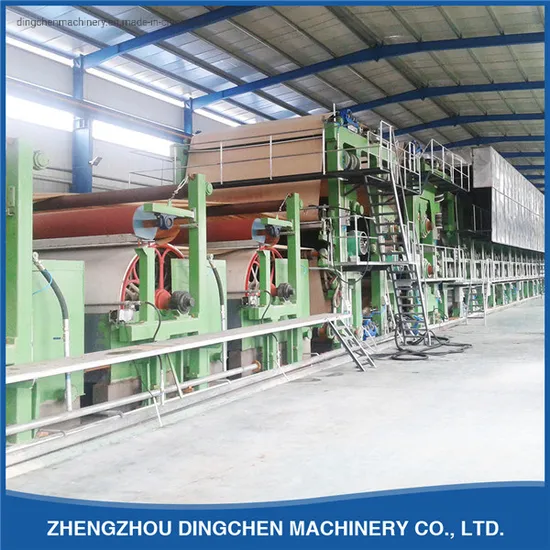

High Quality 1760mm Type Paper Production Line Craft Paper Machine

Product Description

1760mm Type Paper Production Line Craft Paper Machine
Technical parameters

1	Raw material	waste paper
2	Output paper	kraft paper
3	Output paper weight	110-250g/m2
4	Net paper width	1800mm
5	Capacity	10-15T/D
6	Width of cylinder mold	2200 mm
7	Working speed	20-55m/min
8	Design speed	9.80m/min
9	Rail gauge	2600 mm
10	Drive way	AC inverter speed, section drive

Structure and characteristic of main part:
1.Cylinder section: Φ1500mm×2200mm×2600mm stainless steel cylinder mould 3sets, Φ500mm×2200mm×2600mm couch roll 4 sets, includes reverse roll 1set, rubber shore hardness 38ºC±2.
2.Press section: Φ600mm×2200mm×2600mm nature marble roll 2 sets,Φ550mm×2200mm×2600mm rubber roll 2 sets, rubber shore hardness 92ºC±2,Pneumatic pressure device.
3.Dryer section:Φ1500mm×2200mm×2600mm alloy dryer can 10sets,with dryer screen device.
with 10 blades,with semi-closed exhaust hood 1 group
4.winding section: 1760mm winding machine 1 set
5.Rewinding section:1760mm rewinding machine 1 set
Company Information Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly! Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations. Technical Advantage 1.Experienced producing team 2.Advanced technological strength Product Advantage 1.Through the international authentication 2.The same material the most preferential price 3.A lot of varieties for the customer to choose Service Advantage 1.Technical consultation 2.Project evaluation 3.Detailed design of factory 4.Installing and testing the whole production line 5.Training engineers and workers 6.Supplying spare parts for long time Packaging & Shipping
