New High-End Wafer Biscuit Baking Oven Cheese Waffle Equipment Wafer Production Line

Product Description

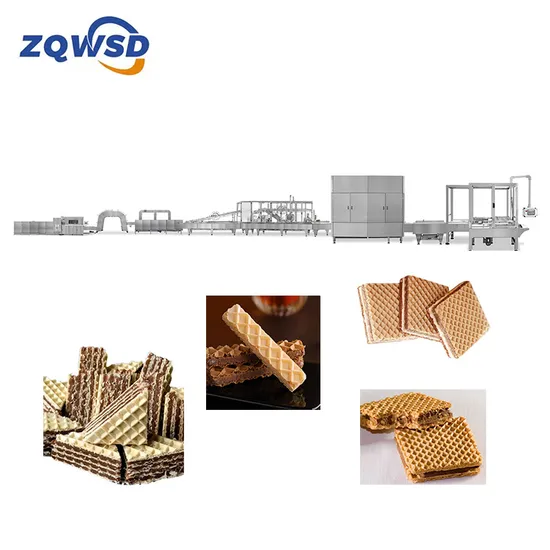

Wafer Biscuit Production Line:
The whole line consists of:

NO.	Machine Name	Quantity (set)
1	Automatic Tunnel Baking Oven	1
2	Sheet Receiver	1
3	Cooling Machine	1
4	Sheet Picking machine	1
5	Cream Spreading machine	1
6	Cooling Cabinet	1
7	Laminating Machine	1
8	Cutting Machine	1
9	Wafer Batter Mixer	1
10	Cream mixer	1
11	Smashing machine	1
12	Electric Control Cupboard	1

Descriptions:
1. Automatic Wafer Baking Oven: Equipped with a user-friendly touch-screen and advanced Siemens PLC Software, this unit utilizes electricity or LPG/LNG for heat generation, creating perfect wafer biscuits with ease.
2. The equipment is engineered for simplicity with automated temperature control, lighting, mixing, blowing, and sheet splicing, seamlessly completing the baking process.


Main Technical Parameter of Baking Oven:

No. of Heating Plates	27, 33, 45, 51, 57, 63, 69, 75 and so on
Baking Plates Size	470x325mm
Patterns of plates	2.5x2.5x0.9mm or 3.0x3.0x0.9mm
Output	up to 6~40 sheets/min
Thick of the biscuit	2.0mm~5.0mm
Inside Baking	Cleaning device
Dimension	6000x1620x2200mm

1. Material: Crafted from premium materials to ensure durability and performance. Shell adopts 304 Stainless Steel, featuring Siemens or Mitsubishi controls, SKF high-temperature bearings, SEW Motors, and an Italian Burning System for unmatched reliability..
2. Material of Baking Plates: Made from Gray Cast Iron, Special Steel, and Copper for optimal heat distribution.
3. Baking Plates Temperature Adjustable: Offers a versatile range, up to 200 °C, to meet diverse baking needs.
4. Inside Baking Cleaning device: Ensures hygiene and maintenance efficiency.

Perfect After-sales: Our commitment to customer satisfaction extends beyond purchase.
1. One-year guarantee: Assurance of quality and reliability.
2. Our technical staff will install the machine for the client upon arrival, ensuring seamless integration.
3. We provide ongoing support, helping clients resolve any issues that may arise.

TUNNEL WAFER MAKING MACHINE:
The cornerstone of superior wafer production. Function:
This essential component ensures efficient and consistent production of quality wafers.
The wafer baking system utilizes gas to heat the baking plates, promoting even baking.
The function of the baking oven is fully automatic, from batter spreading to the emergence of perfectly baked wafer sheets.
Baking is consistent, producing top-quality wafer sheets ready for further processing.
The PLC features a PID controller for precise, automatic temperature regulation of the baking plates.
automatically controlled for optimal results.
PID signals are precisely managed with infrared sensors for impeccable baking accuracy.
Status displays and data resets are managed via a touch screen, with motors protected by current and thermal safeguards.
starting current protection and thermal overload protection.
Production Line Series:
Special Cream Spreading Machine:
This machine is essential, determining the precise number of wafer sheets and cream layers. Features include applying a uniform cream layer to pre-cooled wafers, ensuring consistency. Sheets are evenly layered with cream, then gently pressed to form a cohesive wafer block with adjustable layers for a tailored count of 3, 4, 5, etc.
Packing & Delivery: Ensure your investment arrives safely and securely.
Package: Expertly packed in film for protection.
20'GP/40'GP/40'HQ: Suitable for various container sizes.
Standard packing in container for seaworthy transportation.

Shipping: Options tailored to your needs.
By sea or by land: Choose the most convenient shipping method.
The shipping method will depend on the destination and weight of the goods, ensuring cost-effectiveness.
FAQ: Addressing your queries with clarity and precision.
1. Ask: Are you a manufacture/factory? We proudly affirm our status as a leading manufacturer, dedicated to excellence and innovation.
Answer: Absolutely! With over 15 years of dedicated experience, we pride ourselves on being true experts in the intricate art of processing wafer production lines.
2. Ask: Could you elaborate on the warranty offered for your machine?
Answer: Our quality assurance period extends for a full year. Should any malfunctions arise due to the machine itself or quality issues, our esteemed manufacturer takes full responsibility.
3. Ask: As we are located outside of China, how can your machines reach us?
Answer: Rest assured, we have your shipping needs covered. Whether by sea, train, or truck, we coordinate the entire shipment process for you. If you have a representative in China, they are welcome to collect the cargo directly from us.
4. Ask: What steps should I take if I encounter operational difficulties?
Answer: We provide comprehensive support, including an English manual and instructional videos to guide you through troubleshooting. Alternatively, we can dispatch a technician to your facility for hands-on assistance.
5. Ask: Could you explain how your pricing is determined?
Answer: Our pricing reflects meticulous consideration of our comprehensive costing, offering a more competitive rate than trading companies, as we are the manufacturers. This ensures you receive superior quality at a competitive price.
6. Ask: What is the estimated manufacturing timeframe for the machine?
Answer: Our team is committed to delivering your machine within 40 to 80 days.
7. Ask: What specific details are required for an accurate quotation?
Answer: 1. Which product piques your interest?
2. What level of efficiency are you aiming for?
