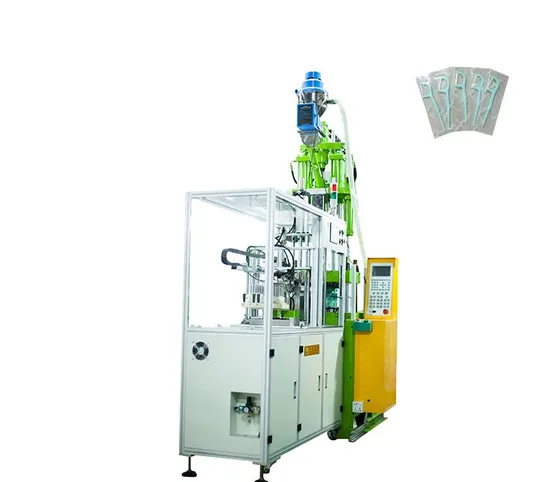

Automated Plastic Toothpick Maker

Product Description

Automated Plastic Toothpick Maker Discover the Full Automatic Equipment for Manufacturing Plastic Flosser Dental Floss Stick Tooth Picks. Our Vertical Injection Molding Machine, designed by Dongguan Tiancheng Machinery Co., Ltd, is the perfect solution for efficient and precise toothpick production. With its advanced technology and high-speed capabilities, this machine is ideal for dental floss stick manufacturing. Experience the benefits of our fully automatic toothpick making equipment today!
Product Description
Product Description
Vertical Clamping/Vertical Injection Moulding Machine
Introducing the Vertical Clamping/Vertical Injection Moulding Machine, designed and manufactured by Dongguan Tiancheng Machinery Co., Ltd. This state-of-the-art machine is perfect for small insert moulding projects, such as electrical plugs and electronic parts.
Features:
Vertical clamping and injection moulding for precise and efficient results.
3/4-section temperature control for optimal temperature regulation.
Stepless adjustments for injection pressure, injection speed, and back pressure, ensuring the production of precision plastic parts.
Quick lock mode and low voltage slow closing mode for enhanced safety. The machine automatically opens the mould when abnormalities occur, protecting the mould effectively.
Fix the down mould and move the upper mould for easy positioning of inserts in the mould.
Hydraulic ejection system for convenient removal of finished products from the mould.

Experience superior performance and efficiency with the Vertical Clamping/Vertical Injection Moulding Machine from Dongguan Tiancheng Machinery Co., Ltd. Don't miss out on this cutting-edge solution for your moulding needs!
Detailed Photos
Product Parameters

Brand Name	TianCheng		Style	VERTICAL
Condition	New		Model NO.	TC-550-P
Screw Diameter (MM)	30--36		Max.Hydraulic Pressure(Kg/cm3)	140
Maximum injection Pressure (Kg/cm2)	2177--1513		Pump Output (L/min)	57
Theoretical Shot Volume (Cm3)	98--142		Oil Tank Capacity (L)	166
Maximum Shot Weight (G/oz)	87/3.0--160/5.6		Cooling Water Consumption(L/H)	600-800
Injection Rate (Cm3/sec)	68--97		Electric Power (KW)	7.5
Screw Speed (R/Min)	0--210		Total capacitance (KW)	2.8
Screw Rate (MM)	140		Total Wattage (KW)	/
Nozzle Retraction Stroke (MM)	220		Machine Specification(M)	1.8*1.2*2.6
Clamping Force (Ton)	55		Weight of Machine (KG)	2500
Opening Force (Ton)	7.2		Plastic Processed	PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP
Platen Size (MM)	/		After-sales Service Provided	Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Distance Between Tie-Bere (MM)	180/240		After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
minimum Mold Thickness (MM)	180/240		Warranty	1 year
Opening Stroke (MM)	200		Applicable Industries	Manufacturing Plant, Construction works , Energy & Mining, Other
Max-Distance opening mold (MM)	380/440
Max.Mold Size	450*400
Ejector Force (Ton)	1.3
Ejector Stoke (MM)	/

Certifications
Packaging & Shipping
Company Profile
After Sales Service
FAQ

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Why choose TianCheng Machinery Co., Ltd.?

A4: "Tiancheng Machinery, we sincere, you succeed!" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
