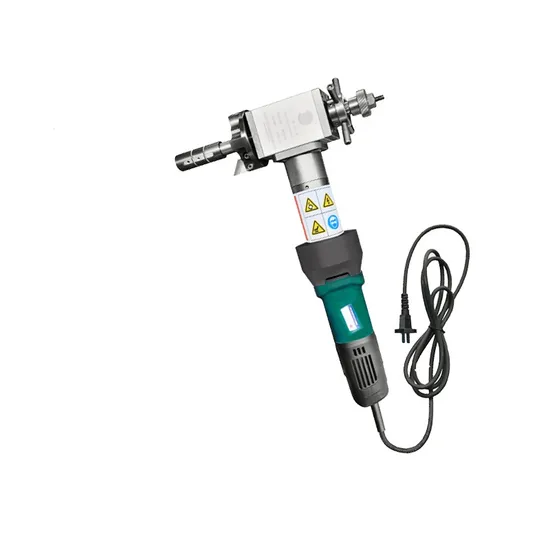

ISE-80 ID-Mounted Pipe Beveler Beveling Machine for Pipe 28-76 mm

Product Description

Product Description
This series of machines are ideal for all types of pipe beveling and pipe end preparation. The compact design makes it suitable for any narrow working conditions.
It can not only deal with the U-type, and V-type welding seams of carbon steel, stainless steel, alloy pipes, but can also process the convex flanges.
This electric pipe beveling machine has a wide application. It can be used for petrochemical industry, road & bridge construction, environmental engineering, aerospace industry, pipeline engineering, marine engineering, etc.
Product Features
1. Easy to install It is easy to install the machine.Centering can also be done quickly.
2. Easy to operate and handy to use It is light and of compact size, enabling it to be carried easily. It is easy to dismount and mount this beveling machine. Thus it
is favored by many users since it can be used without being subject to the construction site.
3. High efficiency Besides, it works at a high speed and with a powerful beveling force. The beveling section is smooth.
4. With stable performance This is a new type, which shall not burn hot. The performance is much more stable and durable.
5. Cutters of good quality This beveling machine is manufactured with rigorous workmanship. The cutter head is of high quality.
6. Customizable beveling angle This beveling machine can be customized based on customers' demand.
7. Two types for you to choose from There are two kinds o machines, i.e, the electric type and the pneumatic-driven type. You can choose as you need.
Product Parameters

Model	ISE-80
Driven	Electric
Power Supply	220-240V1PH 50/60HZ
Motor Power	1500W
Working Range (LD)	28-76 mm
Wall Thickness	Less than 15mm
Rotation Speed	55r/min
Beveling angle	30°

Power	Model	ID (mm)	ID (inch.)	Wall Thickness	Rotating Speed
Electric Power (ISE) Pneumatic Power (ISP)	30	φ18-28	1/2"-3/4"	≤15	50r/min
	80	φ28-76	1"-3"	≤15	55r/min
	120	φ40-120	1 1/4"-4"	≤15	30r/min
	159	φ65-159	2 1/2"-5"	≤20	35r/min
	252-1	φ80-240	3"-10"	≤20	16r/min
	252-2	φ80-240	3"-10"	≤75	16r/min
	352-1	φ150-330	6"-14"	≤20	14r/min
	352-2	φ150-330	6"-14"	≤75	14r/min
	426-1	φ250-426	10"-16"	≤20	12r/min
	426-2	φ250-426	10"-16"	≤75	12r/min
	630-1	φ300-600	12"-24"	≤20	10r/min
	630-2	φ300-600	12"-24"	≤75	10r/min
	850-1	φ600-820	24"-34"	≤20	9r/min
	850-2	φ600-820	24"-34"	≤75	9r/min
