Brightsail Advanced Dry Leaf Grinder Machine Leaf Crushing Machine Moringa Leaf Powder Making Machine with CE

Product Description

dry leaf grinder machine leaf crushing machine moringa leaf powder making machine Product Description

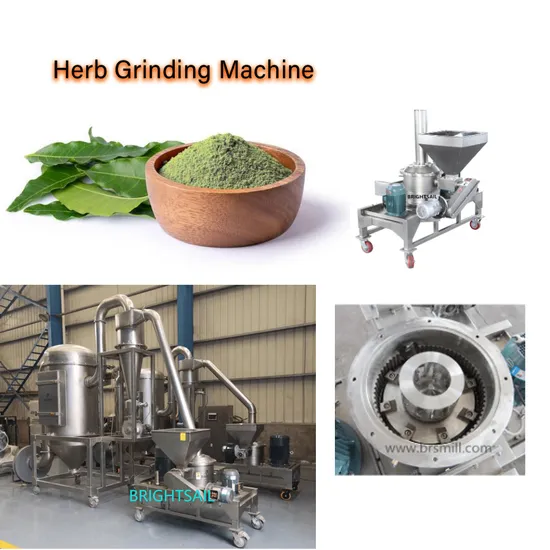

This is our BSP series ultra-fine pulverizer set, which is also called Air classifier mill. This unit is composed of crusher part, powder collecting set, conveying pipes and electric control cabinet.The crusher part has air classifier, which makes product granularity arbitrary adjustable, and can prevent the excessive crushing. Powder been crushed will be conveyed to the cyclone and dust collector by negative pressure, then discharged by discharge valve. BSP dry leaf grinder machine leaf crushing machine moringa leaf powder making machine is suitable for many kinds of materials, such as spice, herbs, cereals, crystal materials...etc. Since it has a air classifier wheel in it,it can make superfine and even powder.
Technical data:

Model	BSP-350	BSP-450	BSP-500	BSP-750
Input size(mm)	<15
Fineness(mesh)	60-2500
Capacity(kg/h)	20-200	40-500	60-800	120-1800
Crush motor(kw)	15	18.5	30	55
Grade motot(kw)	1.5	4	5.5	11
Blower(kw)	7.5	11	18.5	37
Feed motor(kw)	0.55	0.55	0.75	1.5
Discharge motor(kw)	0.75	0.75	1.1	1.5
Speed of principle axia(rpm)	-6500	-5350	-4600	-3100
Material	Stainless steel 304

Working method:
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement. That's why BSP powder making machine can make super fine powder and can be used as a fine powder grinder. Detailed Photos
1) The left motor is classifier motor; the right motor is crush motor.
2) It adopts a small screw feeder, make sure feed speed is even and controllable.
3) Working method: Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades.The powder passes the guide ring and enters the classifier chamber. As the classification wheel is in rotation,both air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a greater mass,they are thrown back into the mill chamber to be ground again,while the particles whose diameters are smaller than the critical diameter enter cyclone separator and dust-collecting box.

1) Cyclone can seperate dust from powder(granules)

2) Rotary valve make powder discharge speed even. It is also made of stain steel stee.
It is convenient to clean and dismantle
1) Dust is collected inside the dust collecting box.
2) Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.
3) With pulse-jet cleaning, dust can be collected very conviniently.
dry leaf grinder machine leaf crushing machine moringa leaf powder making machine features:
I:No need screen, particle size can be changed by change speed.
ll:No dust during production, and dust can be collected in dust collecting box.
III:Can make materials into super fine powder than other common powder grinding machine, some materials can be thousands of mesh.
III: It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.
Company Profile
Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as tea leaf grinder moringa leaf grinder, herb grinder machine, chemical powder mixer machine, pharmacy powder making machine... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
Feedback
After Sales Service
Packaging & Shipping
*Usually small machine(BSP grinding machine) will be packed in the wooden case, and we can also pack it according to customers special request.*If machine is big(such as BSP grinding machine), we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.
