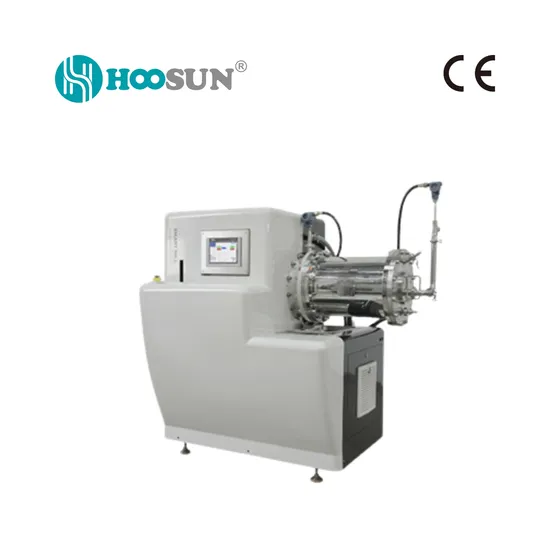

Bead Mill, Versatile Mill for Paints and Coatings

Product Description

Usage Description: Pin type mills are used for fine grinding and dispersing various materials such as paints, pigments, pesticides, lithium-ion batteries, dyes, inks, nano-materials, and ceramic inks. These mills are particularly useful in the chemical industry and the production of high-precision materials where uniform particle distribution and a high degree of homogeneity are required.
Advantages of Pin Type Mills Compared to Disc Mills: High Grinding Efficiency:
Pin type mills provide finer and more uniform grinding due to the intensive interaction between the pins and the particles. Narrow Particle Size Distribution:
Pin type mills can achieve a narrower particle size distribution, which is particularly important for applications requiring high precision and uniformity. Better Cooling:
Due to their design, pin type mills offer better cooling of the material during grinding, preventing overheating and preserving the material's properties. Versatility:
Pin type mills can effectively handle a wide range of materials, from viscous liquids to hard powders, providing high flexibility in production processes. Higher Grinding Speed:
The design features of pin type mills allow for higher grinding speeds, increasing the overall efficiency of the grinding process. Low Operating Costs:
Pin type mills typically require less maintenance and have a longer service life due to lower wear of the working parts compared to disc mills. Technical Specifications: Capacity: 2000 liters per hour Grinding Chamber Volume: 25 liters Drive: Electric Type of Grinding: Fine grinding and dispersing Applications: Paints Pigments Pesticides Lithium-Ion Batteries Dyes Inks Nano-Materials Ceramic Inks Chemical Processing Technical Specifications:

Model Grinding Chamber Volume (L) Batch Size (L) Drive Power (kW)

SMP0.5	0.5	1-7	3.7
SMP10	10	500	17.5/22
SMP25	25	2000	37/45
SMP60	60	>2000	75/90
SMP90	90	>3000	90/110
SMP150	150	>4000	160/250
SMP400	400	>10000	315/355
