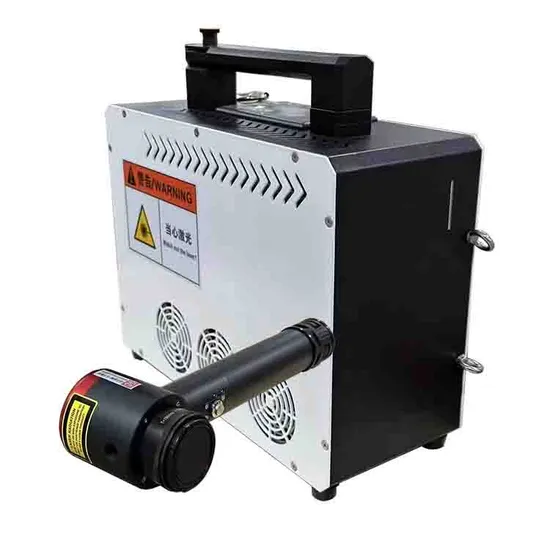

Hot Sale Pulse Laser Cleaner Rust Paint Remove Pulse Laser Cleaning Machine

Product Description

Hot Sale Pulse Laser Cleaner Rust Paint Remove Pulse Laser Cleaning Machine Product Description
FIRMCNC Brand laser cleaning machine is a new generation of high-tech products for surface treatment, which is easy to install, operate and realize automation. The operation is simple, turn on the power, turn on the device, and you can clean without chemical reagents, medium, dust, and water. It can be cleaned on a curved surface, and the cleaning surface has a high degree of cleanliness. It can remove resin, paint, oil, Stains, dirt, rust, coatings, plating and oxide layers, and a wide range of industries, covering ships, auto repair, rubber molds, high-end machine tools, rails and environmental protection etc.
FIRMCNC Laser Cleaning Machine Feature
* Non-contact cleaning without damaging the matrix of the parts;
* Accurate cleaning, which can achieve precise position, accurate size selective cleaning;
* Do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
* Simple operation;
* Ergonomics design;
* High cleaning efficiency, which can largely save time cost;
* Stable cleaning system with little maintenance.
FIRMCNC Laser Cleaning Machine Technical specification:

Technical Parameter
Model	FMJ100W
Average laser power	≥100W
Power instability	<5%
Laser Working Mode	Pulse
Pulse width	150-190ns
Maximum monopulse energy	1.7mJ
Power regulation range(%)	0-100( Gradient Adjustable)
Repeat frequency(kHz)	20-200(Gradient Adjustable)
Fiber length	1.5m
Cooling mode	Air cooling
Cleaning Head Parameters
Scan range (length * width)	0 mm~100 mm, continuously adjustable;Biaxial supporting 8 scanning modes
Scanning frequency	10Hz~300Hz Continuous Adjustable
Field mirror focal length(mm)	160mm( Optional 210mm/254mm/330mm/420mm)
Depth of focus	About 5 mm
Operating Environment
Supply voltage	Optional single battery, 100W continuous work 80-90min Standard AC220V±10%, 50/60Hz power adapter (output DC48V)
Power consumption	≤300W
Working environment temperature	5ºC~40ºC
Working environment humidity	≤80%

Main parts and samples
FIRMCNC Laser cleaning head Technical Parameters:
The advantages of non-contact, no damage to the substrate, precise cleaning, "green" environmental protection, and online, and is especially suitable for high-speed online cleaning in designated areas.
Language switching: set the system language mode
Support Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc.
FIRMCNC laser cleaning system advantage:
* Self-developed bottom layer control system and application software for laser cleaning
* Perfectly adapt to most of the laser cleaning light sources on the market;
* The special software interface is clear, concise and easy to operate;
* Built-in database system, which can save and edit 50 sets of process data;
* Free adjustment of laser parameters such as laser power and laser repetition frequency;
* With online pulse width adjustment function (if supported by the laser), the process parameters can be
* optimized according to the specific conditions on site;
* Optimizing the control of the galvanometer and controlling the sine wave signal can effectively reduce the calorific value of the galvanometer and improve the service life of the galvanometer;
* The dual-axis version provides 7 cleaning modes: straight line, rectangle, circle, sine wave, double helix, free mode, and ring to meet the needs of various application scenarios;
* Adjustable scanning speed, up to 30m/s;
FIRMCNC laser cleaner samples
Laser cleaning of aluminum alloy before and after
Laser cleaning of Metal Surface Oxide before and after
Laser rust removal before and after
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including laser machines, such as laser cutting machine, laser welding machine, laser cleaning machines, also have cnc router machines, wood lathe, mould cnc milling machine, fiber laser cutting machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
Our Advantages
* All of machines are fully assembled and thoroughly tested and checked prior to shipment.
* We provide pre-sales technical advisory services, technical maintenance training and operational training services.
* We provide free repair for main spare parts within warranty period according to warranty agreement.
* We provide upgrades and maintenance for software system within warranty period.
* We provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.
* We provide preferential lifetime maintenance of all equipment.
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our years of experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, video call ,email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use", and we provide engineers available to service machinery overseas.
