UL CE FCC RoHS SAA C-Tick CB PSE 5V 6V 9V 10V 12V 15V 19V 24V 36V 500mA 0.5A 1A 2A 3A 4A 5A Wall Charger/LED LCD CCTV Switching Power Supply/AC DC Power Adapter

Product Description

19 Years Professional Exporter of AC DC Power Adapter
Product Description Top sale user-friendly AC DC adapters
Product Certifications
Packaging & Shipping
Company Profile
Customer Feedback
Cooperative Brands
Contact US
Key Specifications/Special Features:

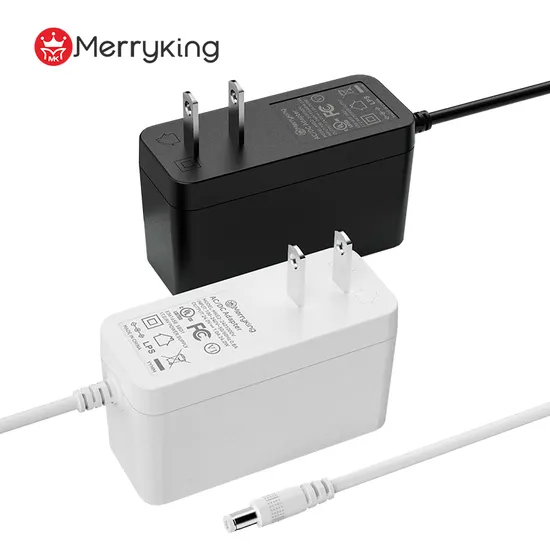

*12W series external wall-mount AC/DC switching power adapter (AC/DC adapter), class II, LPS, Universal input.
*Customized designs are available
*Model number: MKS-0602000VEUD
*Reliability:
100% full loading, 40°C, 4 hours each part of this series can be sold separately
MTBF: meet MIL-HDBK-217F over 50,000 hours, full loading, 25°C burn-in
Leakage current: 0.25mA, maximum at 264V AC
Withstanding voltage: 3kV, 1 minute, 10mA (maximum), between primary and secondary
*Protection:
Over-voltage protection
Over-current Protection
Short-circuit protection
Thermal shutdown capability
*Humidity:
Operating: 10 to 95% RH
Storage: 10 to 95% RH
*Temperature:
Storage: -20 to 65°C
Operating: 0 to 40°C
*Emission and immunity:
EN 55024/A1:2001
CISPR 22 class B
FCC part 15 class B
CNS 13438 class B
EN 55022 class B
AS/NZS 3548 and AS/NZS 4251.1 class B
IEC61000-4-2/3/4/5/6/11
GB 9254-1998/GB 17625.1-2003
*Features:
LED light indicator
High Quality Competitive Price
High-reliability
High-efficiency consumption
Light and portable ,convenient to carry , easy to use
With fuse, short-circuit protection
Environmently friendly, energy-saving, complying with the safe certification standard
Double insulated circuit board designed to protect your valuable gadgets from short circuit
*Certifications:
AS/NZS 60950:2000 and AS/NZS 60065
UL 60950 and GB 4943-2001
PSE IEC 60950 and EN60065
CE (low-voltage directive)
EN 60950:2009 and EN 60065
Standards: US Energy Star, CEC, AS, MEPS, EUP and ErP
*Input Specifications:
Inpout Voltage: 100 to 240V AC
Input frequency range: 50 and 60Hz
No loading power: 0.3W (240V AC)
Current:300mA (maximum)
Inrush current (240V AC): 25A, cold 25°C
Efficiency: Conform to Level V (CEC/ERP/MEPS)
Plug type: wall mount
*Output Specifications:
Output power: 18W Max
DC voltage: 5-30V DC,
Output current: 0.1-3A
Regulation: Line: ±1%, Load: ±5%
Ripple and noise:100mV max
Voltage precision: 5%
DC cord: According to the customer' s requirements
Normal wire length: 1.5m ,1.8m , 2.0m and so on
DC Plug Specification:5.5*2.5,5.5*2.1,3.5*1.35and so on
*application :
LED display, led strip, nixie tube, street light, lamp
Electrical equipment, Instrumentation
Digital and electronic products
LCD, LED, CCTV camera
Building lighting decoration
Communications and security products

Models	Output Loading Voltage	Maximum Loading Current
MKS-3600500	36V	0.5A
MKS-3000750	30V	0.6A
MKS-2400500	24V	0.75A
MKS-1501200	14V	1.2A
MKS-1201000	12V	1.5A
MKS-0902000	9V	2.0A
MKS-0603000	6V	3.0A
MKS-0503000	5V	3.0A

Packaging & Shipping
PE bag+white Box+Carton
Caton size:375*315*295mm
1PCS/Box, 96PCS/Carton
Shipping Details:
1. By air
Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.
2. By sea
Shipments will be operated under FOB conditions.
Our Services
1.We will send samples to your confirmation.
2.We welcome customers to check mass goods before delivery
3.You can ask refund goods in 30 days after you get goods,and all of the cost we will afford if the reason is ours,What's more we will give you the new products as soon as possible
MERRYKING advantage:
Aging test
Aging test, many manufactures test for only one hour so that it can save time. But for our company, we will test four hours in order to make sure the quality of the product and protect the user's safety.
High quality materials
To be honest, we will provide the high quality materials with reasonable prices. We believe that MERRYKING will be assured good power supply in the same industry.
Best quality service
Three is a professional sales team and technical team in our company. Our staffs can provide the best service for you and answer your products' questions in the particular time. FAQ
FAQ
1 :What are the main products in your company?
Our main products include switching power supply, power adapters, lithium battery chargers .
2 :What are your products have been certified?
our products have assed UL,CUL,FCC,CCC,GS,CB,CE,TUV,SAA,KC,ROHS and PSE certification. In other to make the customers understand our products qualities clearly. We will provide the related certifications as the customer requirements.
3:Can you give me more details about the price of your products?
We think our prices are very reasonable. If you purchase the quantity of product more enough, we will give you discount.
4: Would you please kindly tell us the below details for suggesting you the suitable adapter?
1) What's the input please? eg:100-240VAC, 50/60Hz
2)What's the output, please? eg: 5V DC 2A
5:How to choose suitable power adapter ?
1) If your product working current is 1A ,we suggest you to use 12v 1.5A model ,so the adapter can keep good working status and long life ,and the working temperature is very low ,the 12v 1.5A adapter's price is nearby with 12v 1A .
2) If your product is belong to medical device ,the quality standard should be IEC 60601 ,if your product is belong to IT device ,the quality should be IEC 60950
6. Payment
You can pay for the order via :T/T,L/C,D/P,Western Union.

Phenomenon	Standard
EMC	EN 55022:2010
	EN 55024:2010
	EN 61000-3-2
	EN 61000-3-3
CE	EN 60950
	EN 61558
GS	EN 60950
CB	EN 60950
UL/cUL	UL 60950 (UL No.: E361658)
FCC	47 CFR FCC Part 15 Subpart B:2013
	ANSI C63.4:2009
PSE	J60950 / J55022 / J55023 / J55024
SAA	AS/NZS 60950
IRAM	IEC60950 / IRAM 2063:2009

ISO9001:2008 system is fully implemented in our management. Our products have passed most of safety approvals in the world, including UL, cUL, FCC, PSE, GS, CE, SAA, CCC, C-tick, CB, etc.
