PP Micro Pleated Filter Cartridge for Pharma and Photographic Solutions

Product Description

PP Micro Pleated Filter Cartridge For Pharma And Photographic Solutions
Product Description

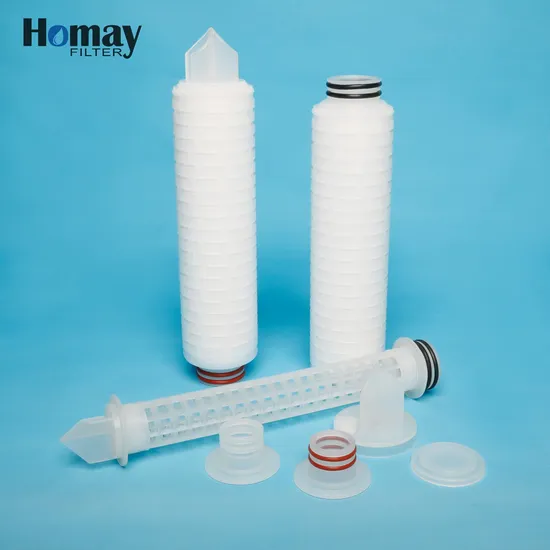

PP/Glass Fiber Pleated Depth Media Filter Cartridge High surface area pleated cartridges have been developed to suit industrial processes where high levels of efficiency and extremely low pressure loss are required. In-house developments have optimized the filter media to give higher levels of porosity, and state of the art manufacturing technologies give excellent build quality. Three standard media options are available. Other more media options are available for special application.
BENEFITS
• Nominal micron rating and absolute micron rating are available.
• Low pressure drop, long service life
• Graded pore density for high dirt holding capacity
• Wide chemical compatibility using 100% polypropylene to meet FDA requirements
APPLICATIONS
• Pharmaceutics
• Food and beverage
• Oil & gas
• Microelectronics
• Chemical
• Prefiltration for RO
• Photographic solutions

SPECIFICATION

Removal ratings	0.1um,0.22um,0.45um,1um, 3um, 5um, 10um, 20um, 50um
Filter Media	PP or Glass Fiber
Support/Drainage	Polypropylene (PP)
Cage / Core / End cap	Polypropylene (PP)
Length ( " )	5/9.75/10/20/30/40
Maximum Operating Temperature	PP : 80°C @1Bar, support adaptors are recommended for temperature exceeds 50°C
	Glass Fiber : 110°C @1Bar, support adaptors are recommended for temperature exceeds 80°C
Maximum Operation Differential Pressure	4.0 Bar @ 20°C 2.4 Bar @ 80°C
Seal Material	Silicone, EPDM, NBR, Viton, E-FKM
