Intermittent Operation Quick Open Type Hanging Bag Discharge Psd Centrifuge Machine

Product Description

Product Description

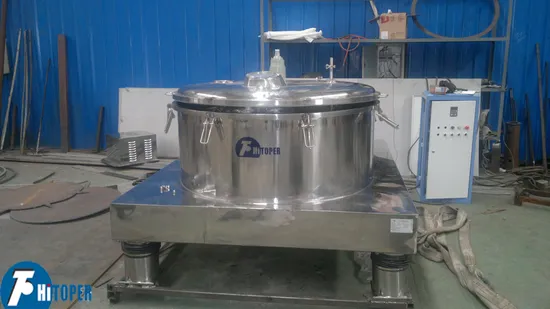

intermittent operation quick open type hanging bag discharge PSD centrifuge machine
1.Product introduction of bag hoist centrifuge:

PSD centrifuge is a kind of improved centrifuge base on SD series three feet up discharge centrifuge.
All parts of PSD centrifuge machine is made of stainless steel 304, food grade one.
With the features of reduce labor intensity, quick discharging, easy cleaning filter bag, the PSD series centrifuge machine has received good reputation.
Also with this type centrifuge, we got rid of traditional suspending type of three legs support, it adopts flat-plate counterweight and high viscosity damping agent vibration isolator for absorbing the vibration, and the installation don't need concrete foundration.

2. Application scope
It is applicable to the separation of suspension containing solid-phase granules with the diameter greater than 0.01mm.
And it is especially applicable to the filtering of toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc.
For example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
3.Structure and Principle:
The drum runs with high-speed by motor, materials enter the drum from top feed pipe ,then run forward to the shell of the drum by centrifugal force, in this case liquor pass through the sieve pore and sieve pore of the shell, then be discharged. Then solid be hold in the drum. After the separation open the machine, loosen the lock blocks on lip ring, and suspend the lip ring together with the filter bags containing cake to discharge. Loosen the grip, make sure the filter bag open, then the filter cake will automatic drop down.

4.Feature:
Suspension from the feed pipe into the drum, the solids in the centrifugal force field by the centrifugal force to accelerate the settlement of the drum wall, the settlement of particles in the screw conveyor blade, driven from the straight section of the settlement area hammer section through the drying area to solid-phase exit discharge; the clarified liquid overflow from the overflow hole. To achieve solid-liquid phase automatic, continuous separation.
Suitable for dewatering, concentration, grading to clarify the different occasions.
Product Parameters
5.Technical Parameter:

Model	Drum				Separation Factor	Motor Power (KW)	Limit Height of Opening the cover (mm)	Total Weight (kg)	Dimensions (mm) (L x W x H)
	Diameter (mm)	Operating Capacity (L)	Loading Limit (kg)	Rotational Speed (r/min)
PD800	800	115	155	1500	1008	7.5	2280	1600/1800	1800x1050x1140
PD1000	1000	170	230	1200	806	11	2590	2300/2800	2030x1300x1220
PD1200	1200	250	340	800	431	11	2850	2800/3200	2300x1500x1350
PD1250	1250	280	400	950	631	18.5	2850	3800/4200	2350x1500x1370
PD1500	1500	500	650	850	607	30	3400	4800/5200	2900x1900x1575
PD1800	1800	600	800	700	494	37	3700	7200/7800	3170x2540x1770
