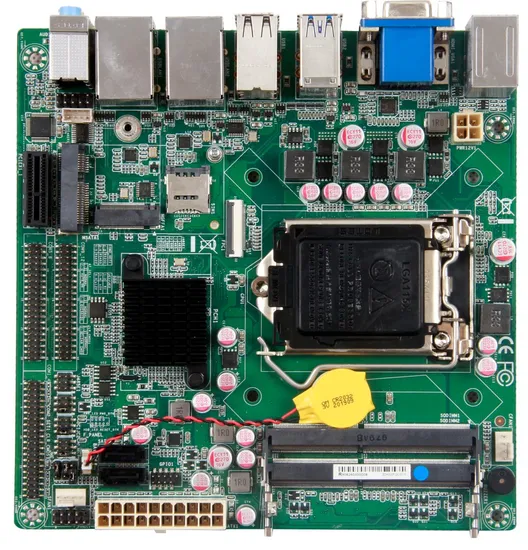

Industrial Motherboard Processor Hz-H310p-12c
| US$100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HZ-H310P-12C
Application
Medical, Industrial
Transport Package
Carton Box
Specification
170mm*170mm*60mm
Trademark
hongzhou
Origin
Shenzhen China
Production Capacity
5000PCS/Months
Product Description
Detailed Photos| Specification | Specification | |
| Rear I/O | 2*LAN | |
| CPU 8th &9th Intel LGA1151 series processor | 4*USB3.0 | |
| Chipset H310 | 10*USB2.0 | |
| GPU Intel Built-in Display Core | 1*VGA | |
| Display VGA ,HDMI,EDP | 1*HDMI | |
| Multiple Display VGA+HDMI/HDMI+EDP/VGA+EDP | 1*AUDIO | |
| USB 4*USB3.0+10*USB2.0 | 1*PS2 | |
| Memory 2*SO-DIMM DDR4 2400/2666MHz 32GB | Internal I/O | 1*F-AUDIO PIN |
| udio Onboard Realtek ALC662HD;+NS4258 Power amplifier chip ; output power: 3.2W× 2(4 ohms load), 5.2W × 2(2 ohms load) | 1*F_PANEL PIN | |
| Network Onboard 2*Realtek RTL8111H Gigabit LAN | 1*SPEAKER PIN | |
| Storage 2*SATA3.0 1*M-SATA (Sata SSD) | 3*COM_CONN PIN(12*COM232,COM2 | |
| WIFI 1*M.2 E Key(For WIFI+Bluetooth) | Support RS232/422/485) 2*SATA | |
| I/O Chip 2*ITE8786E-I | 1*GPIO PIN | |
| BIOS AMI BIOS | 1*SYS-FAN PIN | |
| Power 4PIN AT* /20PIN AT* power supply | 1*CPU-FAN PIN | |
| Cooling Need to equipped 115*CPU fan | 1*20PIN AT PIN | |
| Operating 0~60ºC; 0% ~ 95% | 1*4PIN AT* PIN | |
| Environment Relative Humidity,Non-condensing | 1*SIM Slot 1*FPC(EDP) | |
| Size 170mm*170mm | 1*PCIe | |
Function characteristics:
Intel® H310 Chipset Support Intel CoffeeLake/Coffeelake-R Desktop CPU Two SO-DIMM DDR4 up to 32GB DDR4 2666 MHz Support VGA/HDMI/eDP, Asynchronous/synchronous Display Support 4 * USB 3.0, 10 * USB 2.0, Support 2*SATAIII,1*mSATA 1*RS232, 1*RS232/422/485 Support M.2 WIFI and 3G/4GModule Line-in, Mic-in, Line-out Support PCIe *1 (Gen 3) Expansion Slot
