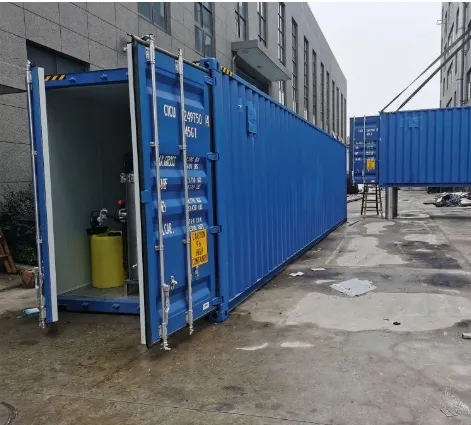

Portable Desalination Station, Reverse Osmosis Desalination

Product Description

Process Flow Diagram Product Detailed Image(project case)
The system can effectively remove inorganic salts, heavy metal ions, organic matter, bacteria and other harmful components in water.
The system has installed new body case with all pipes made of resistant material, so that the whole system can use a long time.
RO system has adopted advanced RO system components and high-quality membranes elements, and has designed according to the equipment's output combining with unique efficient technology so that the system can save much energy.
More advanced devices has been installed in this system, such as flow and pressure control meters,atmospheric valve and blow down piping, which make sure the whole system work stably , safely and conveniently.
Reverse Osmosis Technology
The reverse osmosis membrane is an artificial semipermeable membrane made of a semi-permeable membrane that has certain characteristics and is a core component of reverse osmosis technology.
The principle of reverse osmosis technology is to remove these substances and moisture according to the osmotic pressure of the solution, according to the fact that other substances cannot pass through the semipermeable membrane.
The membrane pore size of the reverse osmosis membrane is very small, so that dissolved salts, colloids, microorganisms, organic matter, and the like in the water can be effectively removed.
The system has the advantages of good water quality, low energy consumption, no pollution, simple process and easy operation.

Filtration diagram

Filtration flow

The central hole of the PP filter element is straight-through hollow. The water of the multi-media filter enters from the inlet. After filtering outside the filter element, it enters the center, flows out from the water outlet. The filter element is evenly distributed in the precision filter, and the water flow uniformly enters the filter element from the outside of the filter element, so each filter element has the same amount of water and equal pressure.

Pressure vessel appearance	Specification
	Material	FRP
	Specification	1000PSI, 6 core
	Quantity	28 Piece
Reverse osmosis membrane assembly diagram	Specification
	Model	TM820M-400
	Quantity	168 Piece
	Brand name	TORAY

1	Pressure vessel	2	Pure water port	3	Inlet/concentrate water port	4	Bearing plate
5	Concentrated water seal	6	RO membrane	7	Membrane connector
