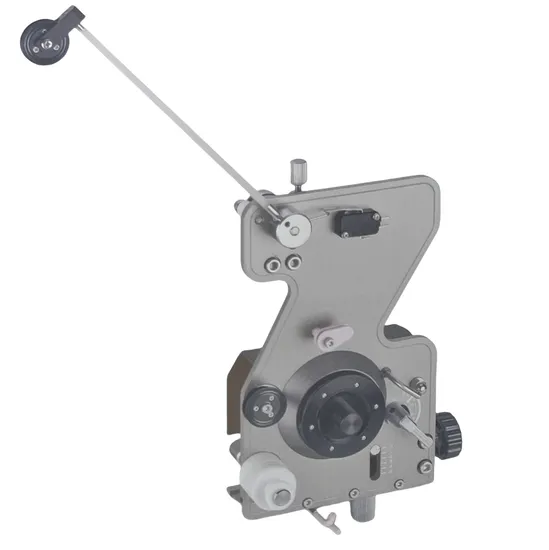

Electric Motor Winding Wire Tensioner Mechanical

Product Description

Product Description
Tension control is a key part that produces adjustable tension during winding to bestow enameled wire with appropriate tension during winding and guarantee reasonable firmness of wire coil wound and therefore the consistence of technical indexes of wire coil.
Working principle: Utilizing contact mechanical friction to provide torque.
Advantages: The tension coverage range is wide, which can meet the winding of thick wires below 1.2mm.


Detailed Photos
Notes for tensioner use:
1. When the working Angle of the tension rod is the same as that of the static installation, or when the tension rod sags to 90 degrees after starting to work, please be sure to readjust the tension again, so as to avoid abnormal wear and reduce the service life of the tensioner components.
2. When the tensioner is in normal use, please check whether there is any residual enameled wire break on the damping wheel when installing or replacing the enameled wire. Please be sure to remove it, otherwise it will be involved in the damping wheel when starting again, causing irregular changes in tension.


Product Parameters

Wire range(mm)	Tension range(g)
0.02-0.04	2.0-11
0.03-0.06	7.0-30
0.04-0.08	9.0-50
0.03-0.08	6.0-50
0.06-0.13	20-130
0.08-0.16	40-200
0.16-0.25	90-500
0.12-0.40	70-600
0.20-0.60	200-2000
0.50-1.20	1000-5000
0.60-2.00	2000-10000

Product advantages
1: Ensure consistency between the electrical performance of the coil and the technical specifications of the production process.
2: The required tension can be controlled with high precision, improving the appearance of the coil and making it flat and full.
3: Can save enameled wire.
4: Reduce friction and change the enameled wire from static friction to dynamic friction, better protecting the insulation layer of the enameled wire.
5: Facilitate product design changes.
Our Advantages
Henan Windoo Industry CO., LTD has been a professional manufacturer and exporter of magnet winding wire since 2008, which is located at Zhengzhou city in the middle part of China with whose products are mainly usage for the production field of transformers, motors, air-core coils, automotive electrical appliances, home appliances, voice coils and so on.
Our basic products include enameled aluminum wires, enameled copper wires, enameled copper-clad aluminum wires, self-bonding copper wire, fiberglass aluminum wire, paper covered aluminum wire, silver-plated copper wires and we expand the horizons to service coiling winding machines to meet different client's purchasing need since 2019 year.

Packaging & Shipping
Transport:
We support air, sea and land transportation.
Our packing is foam + carton. Ensure the safe transportation of products.
Mechanical Coil Winding Tensioner 1 set/box with package by foam and carton box or upon your request
