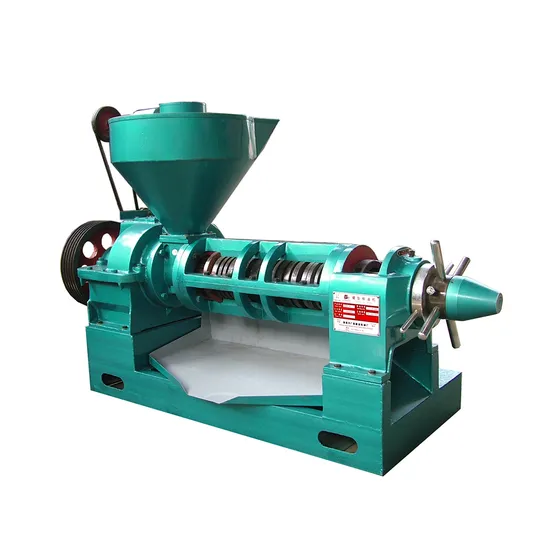

45kg Cocoa Pumpkin Extraction Hydraulic Cold Mini Oil Press Machine

Product Description

Product Introduction
Screw oil press machine is widely used for family and small oil plant etc, the capacity is not very big, but it is an advanced oil press with the leading technology, characterizes by simple design. It is easy operation, energy saving, low noise and high oil output rate.
The oil expeller is capable of cold and hot extruding of peanut, soybean, rapeseed, cotton seed, pumpkin, sesame, sunflower and cacao, canola etc.
Product parameters

Model	Capacity Kgs/h	Power KW	Weight kgs	Overall Dimension
6YL-68	50	5.5	170	800*450*700
6YL-95A	200	7.5	530	1600*700*1350
ZX-10	200	7.5	530	1600*700*1350
6YL-105	270	11	560	1830*700*1350
6YL-130	500	15	850	2000*800*1380

Product Using
This system screw oil press is small type , which is better for the processing of various kinds of vegetable oil-bearing crops,such as the rapeseed/canola, peanut kernel, soybean,olive,walnut kernel, maize germ, rice bran, teaseed, sallow thron seed, chinaberry seed, rubber seed, china pepper seed, tomato seed, water melon seed, grape seed, flax seed, Oenothera seed, pepper seed, castor seed, orange seed, cocoa bean, coffee bean, perilla,almond kernel,peach seed kernel,etc.
Working Princciple and Structure 1.Working principle:This oil press machine uses the poer of the space change for the material in the chamber and the driving force from the scre shaft as well as the resistance from the tooth curve in the pressing ring.The friction force from material pressing produces big pressing power,then oil-segregates from the material and discharges from the pressing bar gap and pressing ring groove.
2.Structure: This oil press machine consists of five main parts,including gearbox,press case,hopper,pressing screw and main body.
Features:
1.Large Capacity: from 1-20T per day in available.
2.High oil extraction rate -compare with old model, multi stage press,one time finish press, increase the oil extraction rate by 2-3%, increase the capacity 35%-50%.
3.Energy saving-- compare with same capacity products, it can reduce 40% power, each hour can saving 6KW/H.
4.High oil purity- vacuum filtration residue, safeguard oil purity, conform to the standard of health.
5.Cover small area-- only need 10-20 square meter can meet the use.
Company Introduction
Jinan Sensi Industries Co., Ltd (JINJULONG MACHINERY FACTORY) is specialized in manufacturing agricultural processing machinery. Our business scope have been involved Agricultural machinery & Parts, Pipe fittings & Valve etc. Our own factory - JINJULONG MACHINERY was a former state-owned agricultural machinery manufacturing plant, with a long history producing experience, strong technical strength and excellent quality control. Our Disk Mill, Flour Mill, pellet machine, Rice Mill, Oil Expeller and Meat Mincer could be process Corn, Wheat, Rice, Paddy, Soybean, Peanut and Chemical & Pharmaceutical raw materials etc. Our machines are selling into India, Egypt, Sudan, Kenya, Morocco, Australia and USA etc...We still keep the quality is the life, Innovation for development, from the wonderful appearance to inner structure, from best package to safety delivery, each action are our best service for the customers. Our trademarks are "SMECH", "SENCHE" "DRAGONSATR" & "NASTAR", we also could make OEM under customer's requirement. We also registered an international offshore company "SENSI INDUSTRIES LIMITED" for management some import & export business. We are willing to build trusty business relationship and friendship with you.
Certification certificate
Our service:
1.Warranty: 12 months after selling
2.Certificates: As your requirements
3.Prepare goods ready according to our agreement
4.Quality Management System: ISO 9001:2008
5.Advanced technique, Strong R&D capability
6.Wide range of product types
7.OEM quality, factory price, fast delivery and efficient service
8.Keep stock for emergency orders
FAQ:
Q1: Can I add my logo on the products?
A1: Yes, OEM is available for us.
Q2: Do you have inspection procedures for the products?
A2: 100% self-inspection before packing.
Q3: Can you accept small qty?
A3: Yes, small qty accept & quick delivery.
Q4: Can I have a visit to your company before the order?
A4: Sure, welcome to visit our company.
Here is our company address: No. 112 Jiefang Road, Jinan, Shandong, China .
Q5: Are you trading company or manufacturer ?
A5: We are factory.

Q6: How long is your delivery time?
A6: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need
Q7: What is your terms of payment ?
A7: 30% T/T in advance ,70% balance before shipment or Negotiable
