Bbo Nonlinear Optical Crystal with Wide Transparency and High Damage Threshold

Product Description

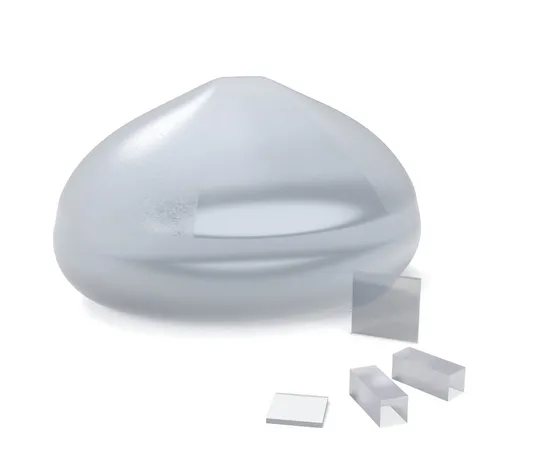

BBO Crystal
BBO (Beta Barium Borate) crystal is a remarkable optical material with exceptional properties.
BBO crystal is known for its wide transparency range, covering ultraviolet to infrared wavelengths. This makes it highly versatile and suitable for a variety of applications in the field of optics. It has a high damage threshold, enabling it to withstand intense laser beams without significant damage.
The crystal has excellent nonlinear optical properties, making it ideal for frequency conversion processes such as second harmonic generation (SHG) and third harmonic generation (THG). It can efficiently convert laser light of one wavelength to another, opening up possibilities for a wide range of scientific research and industrial applications. BBO crystal also has good thermal stability and mechanical strength, ensuring reliable performance even in demanding environments. Its precise optical characteristics and quality make it a preferred choice for researchers, engineers, and manufacturers in the fields of laser technology, spectroscopy, and nonlinear optics.
In the nonlinear optical crystal, BBO crystal is a kind of crystal with obvious comprehensive advantages and good performance. It has a very wide light transmission range, a large matching angle, a high resistance to light damage threshold, and a broadband temperature matching. Excellent optical uniformity, especially for the triple frequency of Nd:YAG lasers.
ADVANTAGES
- Wide transparency
- Broad phase-matching range
- Small walk-off angle
- High damage threshold
- Wide acceptance angle
- High optical homogeneity 473nm
SPECIFICATIONS

Flatness	λ/8 at 633nm
Parallelism	≤20 arcsec
Wavefront Distortion	λ/8 at 633nm
Surface Quality	10-5
Perpendicularity	≤5 arcmin
Angle tolerance	Δθ,Δφ≤±0.25°
Dimension tolerance	±0.1mm
Clear Aperture	90% of central area
Chamfer	≤ 0.2mmx45°
Chip	≤0.1mm
Damage Threshold	0.5GW/cm2 1064nmTEM00 10ns 10HzAR-coated
	0.3GW/cm2 532nm TEM00 10ns 10HzAR-coated
