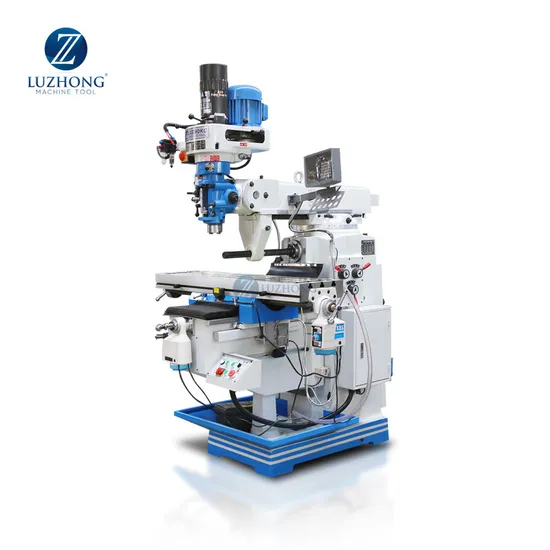

Universal High quality metal 5HW Turret Milling Machine

Product Description

Universal High quality metal 5HW Turret Milling Machine
Product Description
The main performance characteristics:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries. Product Parameters
Product main technical parameters:

Specifications	Units	5HW
Size of working table	mm	1370x305
Table T slot number / widh /space	mm	3x16
Working table stroke(X.Y.Z)	mm	810/420/500
Distance spindle surface	mm	500
Horizontal spindle to table top	mm	0-300
Spindle speed range	r/min	Vertical 80-5440(16rank)Horizontal 45-1350(12 rank)
Taper of spindle hole		Vertical R8/ISO40
		Horizontal ISO40
Spindle sleeve automatic feed	mm/r	0.04/0.08/0.15
Horizontal spindle center to the cantilever plane distance	mm	185
Main motor power	KW	Vertical 2.2KW/3HP
		Horizontal 3.75/5HP
Appearance size	mm	1566x1650x2080
Gross Weight	Kg	1850

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
