336 Channels GPS Rtk Receiver GPS Survey Equipment Foif A90 Base and Rover Imu Tilt Survey

Product Description

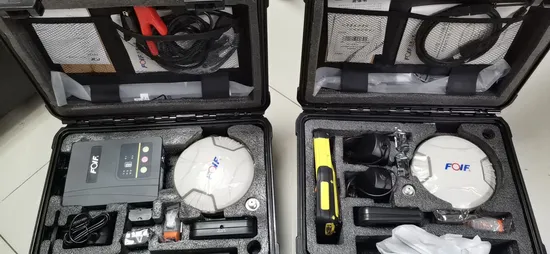

Detailed Photos

Specification

Items
GNSS	GNSS board	Trimble BD990
	Channel	336
	Satellites	GPS: L1 C/A, L2E, L2C, L5
		GLONASS: L1 C/A, L2 C/A, L3 CDMA14
		BeiDou:B1,B2, B313
		Galileo:E1, E5A, E5B, E5AltBOC, E614
		QZSS: L1 C/A, L1 SAIF, L1C, L2C, L5, LEX
		SBAS: L1 C/A, L5 IRNSS :L5
	Update rate	5Hz( Standard to 5 Hz, can pay to activate 50 Hz)
	Static Accuracy	Horizon: ±( 2.5+1*10"D) mm; Vertical: ±( 5+1*10"D) mm
	RTK Accuracy	Horizon: ±( 8+1*10"D) mm; Vertical: ±( 15+1*10"D) mm
	L-Band	OmniSTAR, Trimble RTX
Power	Battery	Dual batteries, 7.2V/3400mAh*2 Can work at least 10 hours
	Input	9-28V DC
System	OS	Linux
	Memory	Internal 8G; TF extended, Max≥32G
	Bluetooth	V2.1+EDR/ V4.1 Dual Mode, Class 2
	WI-FI	802.11 b/g/n
	4G	North America: EC25-A, 4G
		FDD LTE: B2/B4/B12
		WCDMA: B2/B4/B5
	Internal UHF	TRM 101; Power 1W, Frequency 410-470 MHz
		Work Distance: 5km in good environment
	Protocol	SATEL, PCC-GMSK, Trim Talk 450S, South, TrimMark IIII(19200), GeoTalk, GeoMark
	Electric Bubble	Support, Support tilt survey
Interface	TNC	For UHF Antenna
	5 pin	External radio and external power
	7 pin	USB Port, NMEA Out put
	Others	Micro SIM Slot and TF slot
Operation	Button	Power button, also can show Power status
	Indicator	5 indicators: Satellites, Datalink, Bluetooth, WIFI Status, Power Indicatior
	Language	Supports TTS Multi language voice
Physical	D*H	157mm*76mm
	Weight	1.2KGS with 2 batteries inside
Environment	Work Temperature	-30ºC~+65ºC
	Stock Temperature	-40ºC~+80ºC
	Protection	IP67
	Shock	Withstand 2 meters pole drop, 1.2m drop without pole
	Humidity	100%
