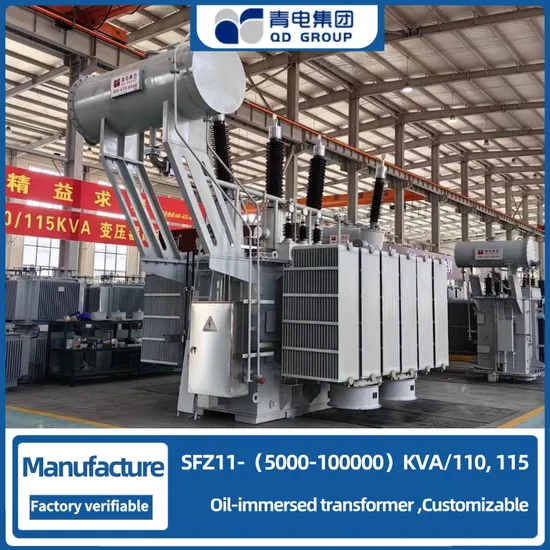

Qingdao Power Transformer Sfz11-5-200mva /110kv 115 121 132kv /35kv/15kv CE Standard 115kv Oil Immersed Transformer

Product Description

Qingdao Electric oil distribution transformer includes hermetically sealed, amorphous alloy, conservator type and on-load tap changer type, which is usually pole mounted or installed in distribution station for daily lighting and factory power whose LV output up to 0.4kV. Our distribution transformer rating is up to 25000kVA, and primary voltage up to 110kV. The corrugated tanks as thermal expansion and contraction component enable the transformer oil completely isolated with the atmosphere. Oil distribution transformer with primary voltage range of 6,10,10.5,11,20,22,24,33, 35,38.5,66,110,121kV can be manufactured according to customer requirements.
Product Introduction

High efficiency, low loss, low noise, strong load resistance and long service life.
High pressure transformer ,use Japanese Toshiba analysis software and our company special calculation and validation procedure. In order to ensure the performance of product, we design and test to the transformer core, coil, the body of machine, lead wire, oil tank and other parts of machine. SZ11-40000/110 has passed the short-circuit bearing capacity and all routine type tests.
This product has the characteristics of stability, economy, reliability and environmental protection, and is suitable for power plants, substations and large industrial, mining and petrochemical enterprises.
Applications 1. No Partial Discharge: Actual measured partial discharge is less than 50pC, lower than the background noise.
2. High Efficiency and Low Loss: Innovative core and coil design, along with leakage magnetic flux control technology, effectively reduces additional and stray losses.
3. Low Noise: Actual measured noise is below 60dB, significantly better than the national standard noise levels.
4. Intelligent Design: Meets the operational requirements of intelligent substations.
5. Maintenance-Free Design: Comprehensive design includes air self-cooling methods, fiberglass dry-type bushings, and metal corrugated internal oil-type conservators, free of routine on-site maintenance, making it suitable for unattended substations.
6. Compact Structure Design: Adopt the industrial advanced 220kV end inlet method, resulting in a compact overall structure, facilitating easier transportation and on-site installation.
7. Strong Short Circuit Resistance: Utilizes foreign short-circuit mechanical force verification procedures and ensures all assembly stages of the transformer body meet design requirements.
8. Over 15-Year's Design Life: Unique high-temperature-resistant hybrid insulation system based on temperature field simulation analysis, ensuring all transformer components have the same design life as the transformer itself.
9. Passes All Routine and Type Tests at Once: The transformer's overall performance reaches advanced domestic levels.
Service environment:
1. Ambient temperature: Maximum +40ºC, Minimum -40ºC.Parameters can also be customized according to the customer's environment, such as long-term stable operation in a 55 ºC desert environment 2. Altitude: less than 1000 meters. 3. Seismic level: less than 3m/s2 at horizontal direction and less than 1.5m/s2 at vertical direction. 4. Installation environment: No obvious and heavy pollution, no explosive and corrosive gas and dust, with good air ventilation and no severe vibration and shock. (Note: If the application environment is different from the above standard conditions, please contact for customized designs.)



MAIN PRODUCTION

Production Workshop

Certifications

Packaging & Shipping

The transportation method is generally land or sea. If you have an urgent need for product use, air freight can also be used for transportation. Company Profile

Qingdao Qingdian Electric Group Co., Ltd was established in 2009, is located in Qingdao Jiangshan Industrial Park,Shandong Province, China,covers an area of 25, 000 square meters, including the construction area of 16, 000 square meters, the company ' s total assets of more than 80million yuan, the existing staff of more than 100 people, more than 20 engineers and technicians. Is specialized in power transformers, box - type substation, high and low voltage complete sets of electrical products such as R & D, manufacturing, sales, power engineering installation ( repair, test ) and general contracting as one of the high - tech enterprises.
FAQ: 1.Who are we?
We are manufacturer.We are based in Qingdao, China, established in 2009,sell to Domestic Market(80.00%),Southeast Asia(20.00%).The company's products are sold in various countries in the Arabian Peninsula and Africa, such as Saudi Arabia and the United Arab Emirates. There are all about 120-150 people in our company.
2.How can we guarantee quality?
Always make a final Inspection before shipping,and every product is 1 year quality warrantee under customer correct using the products.
3.What can you buy from us?
110kV-220kV Oil-immersed Power Transformer,Dry-type Transformer,Unpacked H Grade Dry Transformer,Oil-immersed Distribution Transformer, Pad-mounted Transformer,Enameled Wire,Composite Wire,Transposed Wire,Paper Covered Wire,Film Wrapped Wire.
4.Why should you buy from us not from other suppliers?
As an enterprise specializing in transformer production for 15 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L ,CE certificates and IEC, ANSI, KEMA, GOST standard.
5.What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW; Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese.
6.How long is the delivery time for the product?
In general, it take 3~6weeks and it depend on the different style.
