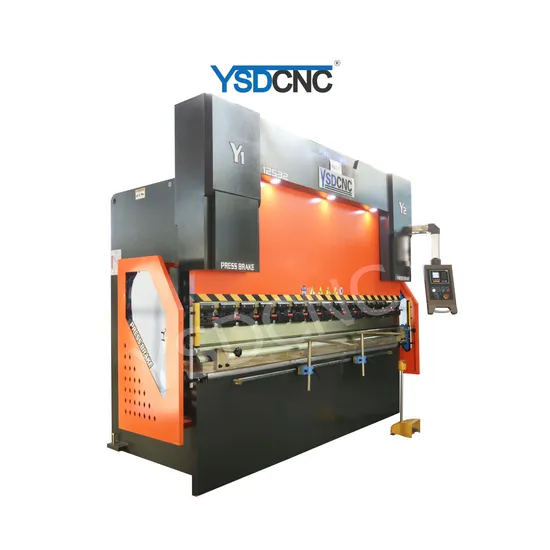

Customizable CNC Press Brake 160 Ton Press Brake Sheet Metal Bending Machine High Precision E21

Product Description

1. Whole welded machine structure
2. E21 for X axis and Y axis control
3. Single/ Cylinder bending program
4. Work-piece counting function
5. Bending retraction function
6. Backgauge with ball screw and Manual R axis Products Description Features
WC67K NC hydraulic press brake machine with E21 has integrated hydraulic control system, which is compact and reduces piping connections, increasing system reliability and ease of maintenance. The machine is synchronised with twisted axes and has two synchronised pendulum arms at both ends of the ram, so that the movement of the ram is always parallel to the working table and has a high resistance to deflection during operation. The lower limit stroke of the cylinder is positioned by a mechanical gear block, so that the continuous working bending angle does not drift. The backstop and ram stroke can be manually fine-tuned and the E21 system has a digital display. The slider adopts the upper drive, the speed adjustment range is large, the work is stable and reliable. Equipped with compensation function, high bending accuracy. Details Images Fast clamps Extremely accurate clamping, positioning extremely accurate clamping, positioning Laser Protection The DSP laser protection with 3 modes comprehensively protects the personal safety of the operators and maintains the high level of the productivity of the YSDCNC press brake. Special punch and die WILA Hydraulic Clamping System WILA has focused on the R&D of the hydraulic clamping systems and supporting tools of press brake machine for many years, and its quality and service are trustworthy. Safety Light Curtain The light curtain, YSDCNC chooses is from the well-known brands, with perfect performance to offer a highly effective solution for both operator safety and machine productivity. Sheet Follower The YSDCNC press brake with sheet follower for bending long and thin sheets. It places on the front of the press brake at the
height of the bending line.
Robotic Arm Press brakes abound, virtually every metal fabrication shop has one or more, but brakes still remain one of the most labor
intensive machine tools in the fabrication process. Every fabricator understands the benefits achieved by running a press brake"lights out" 24/7 at top speeds, which can only be accomplished with automation and robots. Browse our offering of advanced Robotic Bending Automation technology that may be the answer to the efficiency improvements you're looking for.
Specification

Model	Nominal Force	Worktable Length	Poles Distance	Throat Depth	Slider Travel	Max Opening height	Power	Dimension
		(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	L*W*H(mm)
40T/2200	400	2200	1875	230	100	320	5.5	2200*1200*1910
40T/2500	400	2500	1875	230	100	320	5.5	2500*1200*1910
50T/2500	500	2500	1875	230	100	320	5.5	2500*1210*2000
63T/2500	630	2500	2020	250	100	320	5.5	2500*1300*2210
63T/3200	360	3200	2575	250	100	320	5.5	3200*1300*2210
80T/2500	800	2500	2020	300	100	320	7.5	2500*1400*2300
80T/3200	800	3200	2590	320	100	350	7.5	3200*1500*2300
80T/4000	800	4000	3050	320	100	350	7.5	4000*1500*2400
100T/2500	1000	2500	2020	320	120	320	7.5	2500*1600*2400
100T/3200	1000	3200	2600	320	120	370	7.5	3200*1600*2600
100T/4000	1000	4000	3050	320	120	370	7.5	4000*1600*2700
125T/3200	1250	3200	2600	320	120	370	7.5	3200*1600*2600
125T/4000	1250	4000	3050	320	120	370	7.5	4000*1600*2700
160T/3200	1600	3200	2600	320	200	460	11	3200*1700*2700
160T/4000	1600	4000	3000	320	200	460	11	4000*1700*2800
160T/5000	1600	5000	4000	320	200	460	11	5000*1900*3100
160T/6000	1600	6000	4940	320	200	460	11	6000*1900*3200
200T/3200	2000	3200	2600	320	200	460	11	3200*1950*2800
200T/4000	2000	4000	3000	320	200	460	11	4000*1950*2800
200T/5000	2000	5000	4000	320	200	460	11	5000*1950*3000
200T/6000	2000	6000	5000	320	200	460	11	6000*1950*3300
250T/3200	2500	3200	2500	400	250	590	18.5	3200*2000*3200
250T/4000	2500	4000	3000	400	250	590	18.5	4000*2000*3400
250T/5000	2500	5000	4000	400	250	590	18.5	5000*2000*3400
250T/6000	2500	6000	5000	400	250	590	18.5	6000*2000*3400
300T/3200	3000	3200	2530	400	250	590	22	3200*2000*3450
300T/4000	3000	4000	3470	400	250	590	22	4000*2000*3450
300T/5000	3000	5000	4000	400	250	590	22	5000*2000*3450
300T/6000	3000	6000	5000	400	250	590	22	6000*2000*3450
400T/4000	4000	4000	3000	400	250	590	30	4000*2180*3400
400T/5000	4000	5000	4000	400	250	590	30	5000*2180*3500
400T/6000	4000	6000	5000	400	250	590	30	6000*2180*3800
500T/5000	5000	5000	4000	400	250	590	45	5000*3500*3700
500T/6000	5000	6000	5000	400	320	590	45	6000*3500*3700
600T/4000	6000	4000	3000	400	320	590	55	4000*4500*3700
600T/6000	6000	6000	5000	400	320	590	55	6000*4500*3700
800T/6000	8000	6000	5000	400	320	590	55	6000*4500*6000

Our Company Nanjing Shanduan "YSDCNC"currently has more than 300 employees, including 30 sales engineers and 35 service engineers. The factory covers an area of 26,000 and is equipped with 3 sets floor-standing boring and milling machines, 6 sets gantry planers, 10 sets radial drilling machines, and CNC processing.There are 25 sets centers, with a total of more than 200 sets large and small production equipment.
Our company has passed TUV, SGS, BV, CE and other certifications. Quality assurance, EU approval, the products sell well in more than 100 countries. Nearly 30 years of expertise in the manufacture of press brakes and guillotines machines give us the security that is needed for future challenges. High standards of quality and a team with the best training and knowledgeare a major condition for our success. Our products are the result of a continued focus on improving internal processes underpinned by high quality levels, that result in the recognition of YSDCNC' S machines as quality garantee equipment. 1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack, convenient to handing and transport. FAQ Is it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized
models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
How to buy?
Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit
in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789
How about the after-sales service?
15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free
replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside
the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service.
How about your quality?
Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other
certifications. Quality assurance, EU approval, the products sell well in more than 100 countries.
What other services do you have?
Free counter, free customs declaration, free installation training for export, free online technical guidance.
