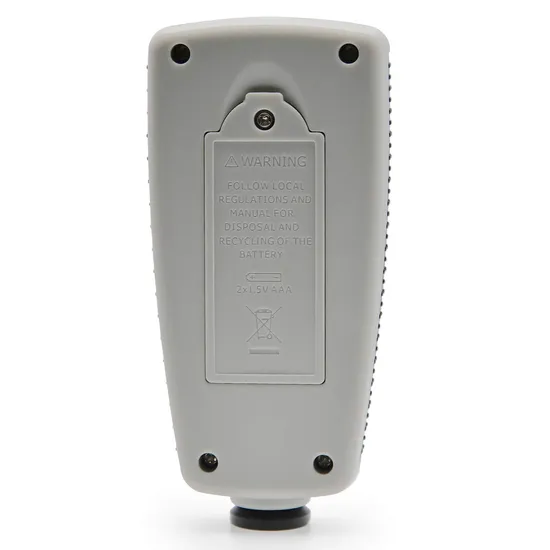

Digital Coating Thickness Meter (AMT15A)

Product Description

Coating Thickness Meter (AMT15A)
Features: 1. Non-magnetic coatings (e. G. Paint, zinc) on steel
2. Insulating coatings (e. G. Paint) on no-ferrous metals
3. No-ferrous metals coatings on insulating substrates
4. Menu operation system
5. Two measuring mode: CONTINUE and SINGLE mode
6. Two working Mode: DIRECT and GROUP mode
7. Statistic Display: AVG, MAX, MIN, NO., S. DEV
8. One point calibrating, two points calibrating and basic calibrating easily
9. Memory for 400 readings(80 DIRECT and 320 GROUP readings)
10. Delete single readings and all group readings easily
11. High alarm and Low alarm for all working mode
12. Low battery, error indication
13. USB interface for PC software (windows 98/2000/xp/vista)

Sensor probe		F	N
Working principle		magnetic induction	Eddy current principle
Measuring range		0~1300um (0~51.2mils)	0~1300um (0~51.2mils)
Guaranteed tolerance (of reading)		(+/- 3%+1um)	(+/- 3%+1um)
Resolution	0~999um	1um	1um
	1000~1300um	0.01mm	0.01mm
Minimum Max curvature radius		1.5mm/25mm	1.5mm/25mm
Minimum Diameter of Minimum area		6mm	6mm
Basic critical thickness		0.5mm	0.3mm
Size (HxWxD)		113.5mm x 54mm x 27mm
Weight		110g
